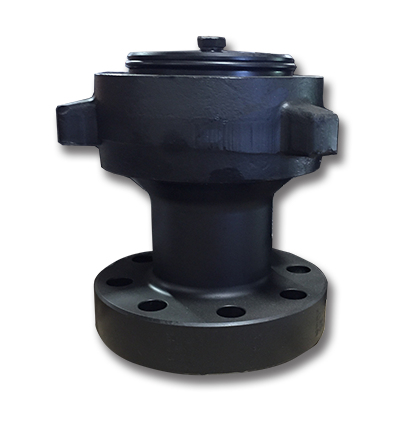

Bottom hole test adapters
Bottom hole test adapters or Treecaps allow a flexible means of entry into the tubing bore. Apache tree caps are constructed with one piece forging and is designed to use where a integral flanged unit is preferred.
Flanges and Adapters
Flange Size
Bore
A
B
C
Lift Thread
Wt (Ibs)
2-1/16" 5,000 psi
2 1/16"
7.79"
8.46"
2.07"
2 3/8" EUE
2.65
Flange Size
Bore
A
B
C
Lift Thread
Wt (Ibs)
2-9/16" 5,000 psi
2 9/16"
7.79"
9.65"
2.56"
2 7/8" EUE
2.65
