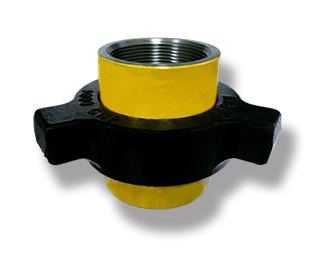

FIG 100

Low Pressure Service
Metal-to-Metal Sealing
WOG Up To 1000 Psi
NPT Threaded Connections
HAMMER UNIONS
1,000
NSCWP
1500
TEST
Standard Service
Part#
A(in)
B
WT(lbs)
A100T - 2.0
2.94
3.66
Part#
A(in)
B
WT(lbs)
A100T - 3.0
4.07
4.92
Part#
A(in)
B
WT(lbs)
A100T - 4.0
4.55
4.92
Part#
A(in)
B
WT(lbs)
A100T - 6.0
6.57
7.48
Part#
A(in)
B
WT(lbs)
A100T - 8.0
8.50
8.72
5.60
14.00
23.00
48.00
59.00
Part#
NPT
Material
M SUB
A100T - 2.0
2"
A105
Part#
NPT
Material
M SUB
A100T - 3.0
3"
CS
Part#
NPT
Material
M SUB
A100T - 4.0
4
CS
Part#
NPT
Material
M SUB
A100T - 6.0
6"
DI
Part#
NPT
Material
M SUB
A100T - 8.0
8"
DI
F SUB
A105
F SUB
CS
F SUB
CS
F SUB
DI
F SUB
DI
NUT
CS
NUT
CS
NUT
CS
NUT
DI
NUT
DI
