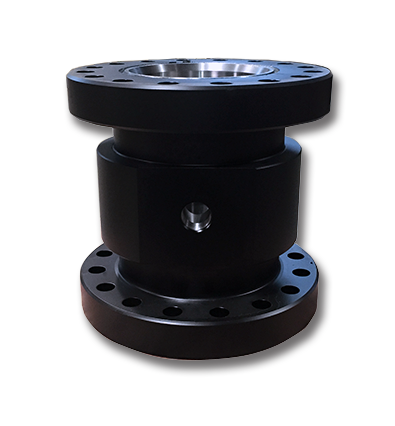

Intermediate spools

Apache casing spools have a C-22 profile with a straight bore bowl design with 45 degree load shoulders. Bottom prep can be standard PE/BG, O2 bottom (below 5,000 psi applications) or HPE Bottom
C-29 Casing Spools are based on the same design as the C-22 with a larger bowl. Which permits the acceptance of the C-29 Casing Hanger with larger load capacity.
Components
PE/BG Bottom
O2 Bottom
HPE Bottom
Ordering Options
Lock Screws
Bottom Prep
API 6A specifications
Line Pipe Outlets
Side Studded Outlets
CIW or ET Style Pins are available upon request
PSL 1~3, PR 1
DD-NL ~ EE-NL
LU
Outlets
