E-Series

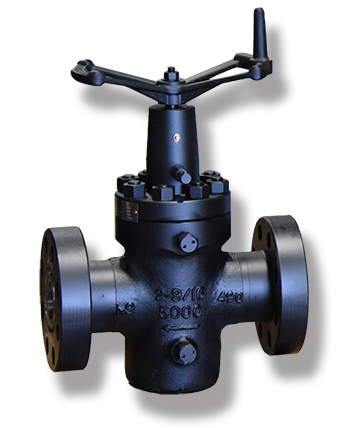

The Apache expanding gate valve are designed for oil & gas wellheads, production trees, and critical applications with operating pressure from 2,000 ~ 5,000 psi and sizes ranging from 2 1/16" ~ 7 1/16"
Apache expanding gate valves utilizes a wedge gate design for a mechanical seal that does not rely on inline pressure to seal.
Apache expanding gate valves comes in variety of sizes, pressures and trim levels. Please consult trim charts or specify well conditions at the time of inquiry for the best trim and PSL level for your application.
Apache expanding gate valves utilizes a wedge gate design for a mechanical seal that does not rely on inline pressure to seal.
Apache expanding gate valves comes in variety of sizes, pressures and trim levels. Please consult trim charts or specify well conditions at the time of inquiry for the best trim and PSL level for your application.
GATE VALVE

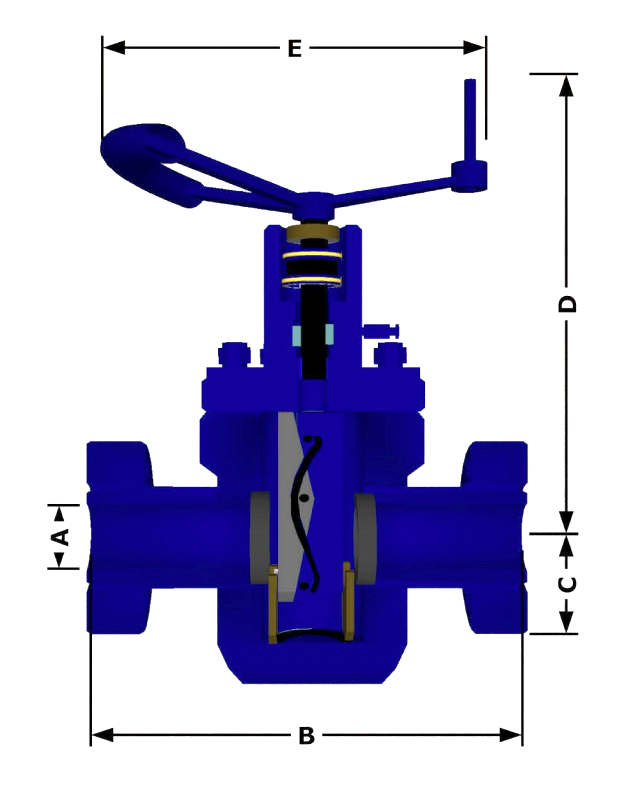

Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
# of Tums
Wt (lbs)
2-1/16"
2.06
9.62
5.3
19.6
13
13
126
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
# of Tums
Wt (lbs)
2-9/16"
2.56
10.25
6.1
20.6
13
15-1/2
142
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
# of Tums
Wt (lbs)
3-1/18"
3.12
11.38
7.6
22.8
16
20
236
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
# of Tums
Wt (lbs)
4-1/16"
4.06
13
9.4
25.9
16
24-1/2
454
Threaded
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
# of Tums
Wt (lbs)
2-1/16"
2.06
14.62
5.3
19.6
13
13
176
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
# of Tums
Wt (lbs)
2-9/16"
2.56
16.62
6.1
20.6
13
15-1/2
224
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
# of Tums
Wt (lbs)
3-1/18"
3.12
16.62
7.6
22.8
16
20
334
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
# of Tums
Wt (lbs)
4-1/16"
4.06
21.62
9.4
25.9
16
24-1/2
614
Flanged
