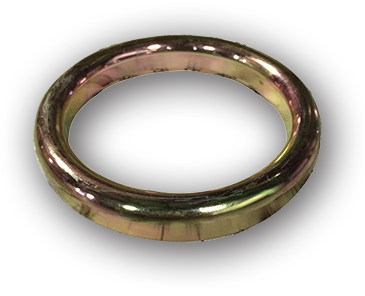

R-type Gaskets

Fits Standard Octagonal
Ring Groves
Oval Cross-Sections
Designed for API 6A Flanges Up to 5000 PSI
Low Carbon Steel
Stainless
Rubber Coated
R TYPE RING JOINT GASKET
Nominal Pipe Dimensions (IN)
Pressure Rating (PSI) 2000
Pressure Rating (PSI) 3000
Pressure Rating (PSI) 5000
2 1/16
R-23
R-24
R-24
Nominal Pipe Dimensions (IN)
Pressure Rating (PSI) 2000
Pressure Rating (PSI) 3000
Pressure Rating (PSI) 5000
2 9/16
R-26
R-27
R-27
Nominal Pipe Dimensions (IN)
Pressure Rating (PSI) 2000
Pressure Rating (PSI) 3000
Pressure Rating (PSI) 5000
3 1/7
R-31
R-31
R-35
Nominal Pipe Dimensions (IN)
Pressure Rating (PSI) 2000
Pressure Rating (PSI) 3000
Pressure Rating (PSI) 5000
4 1/16
R-37
R-37
R-39
Nominal Pipe Dimensions (IN)
Pressure Rating (PSI) 2000
Pressure Rating (PSI) 3000
Pressure Rating (PSI) 5000
5 1/8
R-41
R-41
R-44
Nominal Pipe Dimensions (IN)
Pressure Rating (PSI) 2000
Pressure Rating (PSI) 3000
Pressure Rating (PSI) 5000
7 1/16
R-45
R-45
R-46
Nominal Pipe Dimensions (IN)
Pressure Rating (PSI) 2000
Pressure Rating (PSI) 3000
Pressure Rating (PSI) 5000
9
R-49
R-49
R-50
Nominal Pipe Dimensions (IN)
Pressure Rating (PSI) 2000
Pressure Rating (PSI) 3000
Pressure Rating (PSI) 5000
11
R-53
R-53
R-54
Nominal Pipe Dimensions (IN)
Pressure Rating (PSI) 2000
Pressure Rating (PSI) 3000
Pressure Rating (PSI) 5000
13 5/8
R-57
R-57
-
Nominal Pipe Dimensions (IN)
Pressure Rating (PSI) 2000
Pressure Rating (PSI) 3000
Pressure Rating (PSI) 5000
16 3/4
R-65
R-66
-
Nominal Pipe Dimensions (IN)
Pressure Rating (PSI) 2000
Pressure Rating (PSI) 3000
Pressure Rating (PSI) 5000
20 3/4
-
R-74
-
Nominal Pipe Dimensions (IN)
Pressure Rating (PSI) 2000
Pressure Rating (PSI) 3000
Pressure Rating (PSI) 5000
21 1/4
R-73
-
-
