BFT-600 SERIES

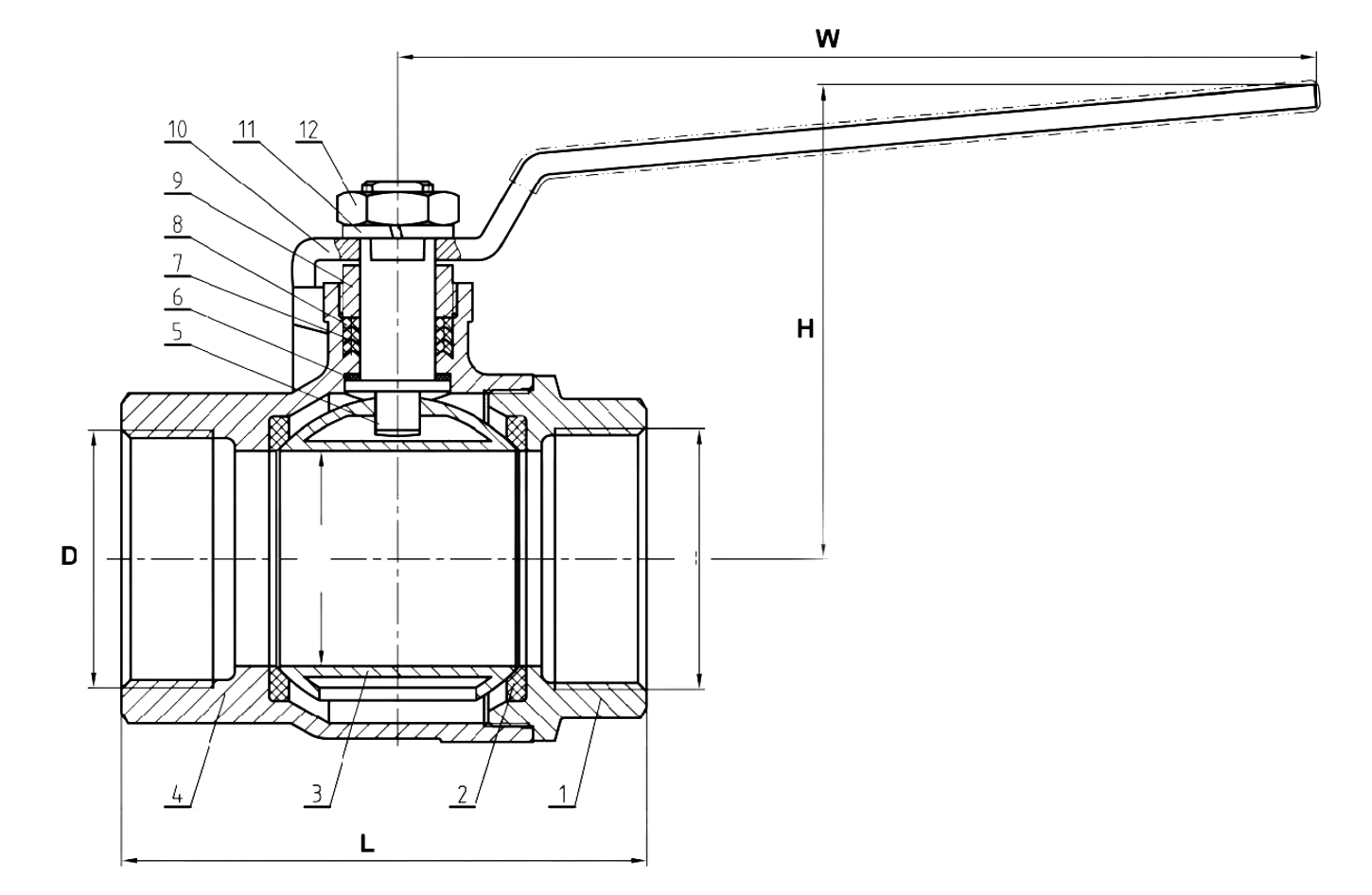

Material
Forget Brass
Cap
1
Part
Material
PTFE
Seat
2
Part
Material
Brass, Chrome Plated
Ball
3
Part
Material
Forget Brass
Body
4
Part
Material
Forget Brass
Stem
5
Part
Material
PTFE
Washer
6
Part
600 PSI Full Port
Forged Brass Body
Floating Ball
600 WOG, 150 SWP
Blow-Out Proof Stem
Not Intended For Potable Water
Threads Conforms to ANSI B1.20.1, BS21, DN 259/2999

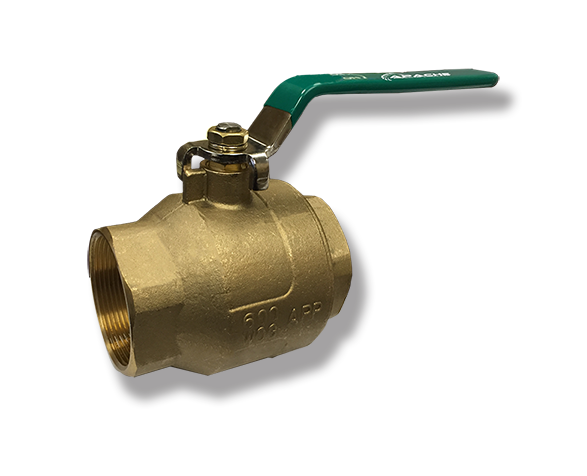

TWO-PIECE THREADED BALL VALVE
Material
PTFE
Packing
8
Part
Material
Brass
Gland Nut
9
Part
Material
Steel, Zinc Plated
Handle
10
Part
Material
Steel, Zinc Plated
Retainer
11
Part
Material
Steel, Zinc Plated
Stem Nut
12
Part
* 2.5" - 4" RATED 1,500 PSI
Material
PTFE
Packing
7
Part
PRESSURE TEMPERATURE RATING
1000
800
600
400
200
0
100
200
300
400
500
Temperature °F
Pressure, PSI
Part#
NPT
L (IN)
W
H
BFT6C0250F
1/4"
1.79
3.07
1.50
Part#
NPT
L (IN)
W
H
BFT6C0375F
3/8"
1.79
3.07
1.50
Part#
NPT
L (IN)
W
H
BFT6C0500F
1/2"
2.09
3.26
1.46
Part#
NPT
L (IN)
W
H
BFT6C0750F
3/4"
2.39
3.28
1.93
Part#
NPT
L (IN)
W
H
BFT6C1000F
1"
2.72
4.72
2.10
Part#
NPT
L (IN)
W
H
BFT6C1250F
1-1/4"
3.28
5.80
2.33
Part#
NPT
L (IN)
W
H
BFT6C1500F
1-1/2"
3.30
5.95
2.52
NPT
L (IN)
W
H
BFT6C2000F
2"
4.65
7.87
3.50
Part#
Part#
NPT
L (IN)
W
H
BFT6C200HF
2" HD
4.72
7.87
3.50
Part#
NPT
L (IN)
W
H
BFT6C2500F
2-1/2"
5.51
8.31
4.82
Part#
NPT
L (IN)
W
H
BFT6C3000F
3"
6.38
8.31
4.82
Part#
NPT
L (IN)
W
H
BFT6C4000F
4"
7.44
10.23
6.14
