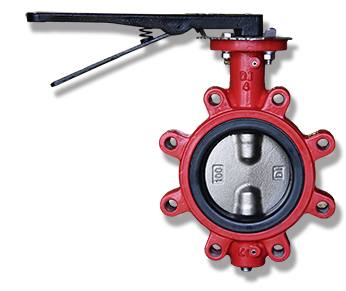

DLBV SERIES
Material
DI
Body
1
Part
Material
DI/CF8M
Disc
2
Part
Material
410SS/416SS/316SS
Down Stem
3
Part
Material
410SS
Up Stem
4
Part
Material
NBR/PTFE/VITON
Seat
5
Part
Material
PTFE
Bushing
6
Part
Material
NBR
O Ring
7
Part
200 Psi, Ductile Iron Body
10 Position Handle
Square Stem
Buna Or Viton Seats
Face To Face Iso 5752
Mounting Pad Iso 5211
10 Position Handle
Square Stem
Buna Or Viton Seats
Face To Face Iso 5752
Mounting Pad Iso 5211
Flange Ansi 150
Disc Selections
Nickel Plated Dl
Aluminum Bronze
Stainless 316
Disc Selections
Nickel Plated Dl
Aluminum Bronze
Stainless 316
LUG BUTTERFLY VALVE
Size
L(IN)
Top Flange
Flange
фF
h
H1
H2
H3
2"
1.69
фN=3.54
фC1=2.76
фC=4.75
0.50
0.35
3.94
3.00
1.14
Size
L(IN)
Top Flange
Flange
фF
h
H1
H2
H3
2-1/2"
1.81
фN=3.54
фC1=2.76
фC=5.50
0.50
0.35
4.60
3.34
1.14
Size
L(IN)
Top Flange
Flange
фF
h
H1
H2
H3
3"
1.81
фN=3.54
фC1=2.76
фC=6.00
0.50
0.35
4.90
3.66
1.14
Size
L(IN)
Top Flange
Flange
фF
h
H1
H2
H3
4"
2.05
фN=3.54
фC1=2.76
фC=7.50
0.62
0.43
6.20
4.28
1.14
Size
L(IN)
Top Flange
Flange
фF
h
H1
H2
H3
5"
2.20
фN=3.54
фC1=2.76
фC=8.50
0.74
0.55
6.14
4.84
1.14
Size
L(IN)
Top Flange
Flange
фF
h
H1
H2
H3
6"
2.20
фN=3.54
фC1=2.76
фC=9.50
0.74
0.55
6.69
5.34
1.14
Size
L(IN)
Top Flange
Flange
фF
h
H1
H2
H3
8"
2.36
фN=4.92
фN=4.92
фC=11.75
0.87
0.67
6.53
1.38
Size
L(IN)
Top Flange
Flange
фF
h
H1
H2
H3
10"
2.68
фN=4.92
фN=4.92
фC=14.25
1.12
0.87
11.22
1.38
Size
L(IN)
Top Flange
Flange
фF
h
H1
H2
H3
12"
3.07
фN=4.92
фN=4.92
фC=17.00
1.12
0.87
11.81
9.37
1.38
9.44
7.99
