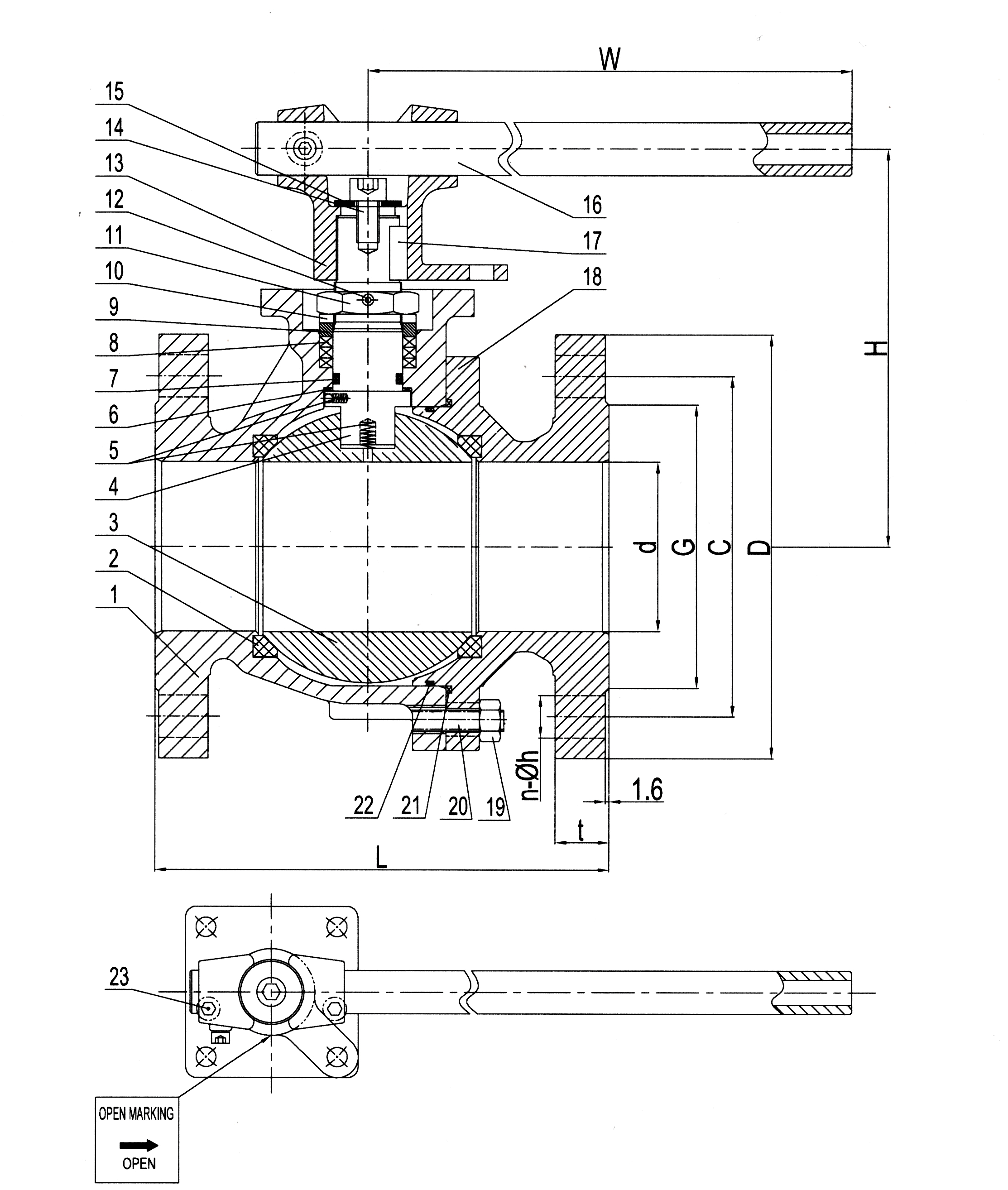

FL 300A SERIES
Material
A216 WCB
Body
1
Part
Material
RPTFE
Seat
2
Part
Material
A182 F316
Ball
3
Part
Material
A182 F316
Stem
4
Part
Material
INCONEL X-750
Antistatic Spring
5
Part
Material
SS+COPPER+RPTFE
Thrust Washer
6
Part
Material
VITON
O-Ring
7
Part
FLANGED BALL VALVE
Material
Graphite
Packing
8
Part
Material
Stainless Steel
Gland
9
Part
Material
Carbon Steel
Spring Washer
10
Part
Material
Carbon Steel
Screw
12
Part
Material
Carbon Steel
Lever Head
13
Part
Material
Carbon Steel
Screw
14
Part
Material
Carbon Steel
Washer
15
Part
Material
Carbon Steel
Lever
16
Part
Material
Carbon Steel
Key
17
Part
Material
A216 WCB
Adapter
18
Part
Material
A194 2HM
Body Nut
19
Part
Material
A193 B7M
Body Stud
20
Part
Material
Carbon Steel
Nut
11
Part
Material
Graphite
Gasket
21
Part
Material
VITON
O-Ring
22
Part
Material
Carbon Steel
Screw
23
Part
in
mm
d
C
D
t
n-h
L
H
2
50
2.01
3.62
5.00
6.50
0.87
8-19.1
8.50
5.43
in
mm
d
C
D
t
n-h
L
H
3
80
2.99
5.00
6.62
8.25
1.12
8-22.2
11.14
6.89
in
mm
d
C
D
t
n-h
L
H
4
100
4.02
6.19
7.88
10.00
1.25
8-22.2
12.01
7.95
NPS-DN
G
G
G
W
15.75
W
17.72
W
19.69
Nominal Dimensions

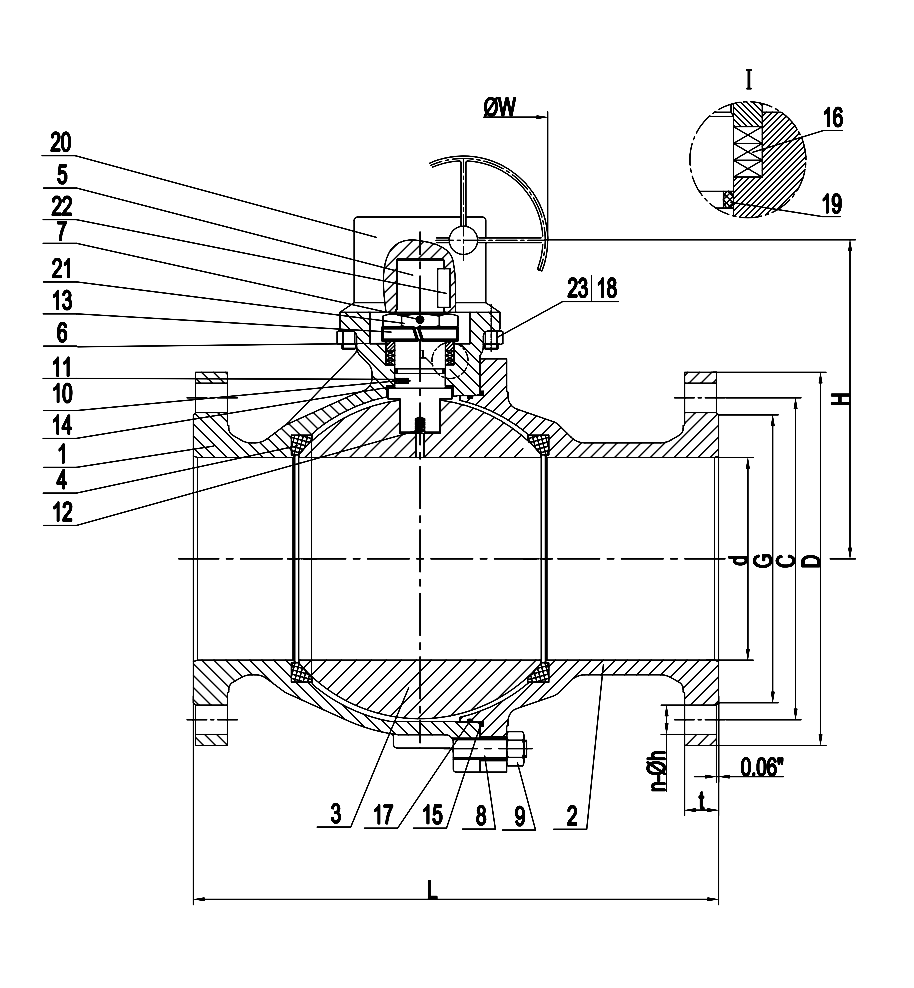

Material
A216 WCB
Body
1
Part
Material
A216 WCB
Adapter
2
Part
Material
A182 F316
Ball
3
Part
Material
A182 F316
Seat
4
Part
Material
RPTFE
Stem
5
Part
Material
Stainless Steel
Gland
6
Part
Material
Stainless Steel
Screw
7
Part
Material
A193 B7M
Body Stud
8
Part
Material
Stainless Steel
Steel Ball
10
Part
Material
INCONEL X-750
Antistatic Spring
11
Part
Material
Carbon Steel
Washer
13
Part
Material
SS-PTFE
Thrust Washer
14
Part
Material
Graphite
Gasket
15
Part
Material
Graphite
Packing
16
Part
Material
VITON
O-Ring
17
Part
Material
Carbon Steel
Nut
18
Part
Material
VITON
O-Ring
19
Part
Material
Component
Gear Box
20
Part
Material
INCONEL X-750
Antistatic Spring
12
Part
Material
A194 2HM
Body Nut
9
Part
Material
Carbon Steel
Nut
21
Part
Material
Carbon Steel
Key
22
Part
Material
Carbon Steel
Stud
23
Part
in
mm
d
C
D
t
n-h
L
H
6
150
5.98
8.50
10.62
12.50
1.44
12-22.2
15.87
9.45
in
mm
d
C
D
t
n-h
L
H
8
200
7.99
10.62
13.00
15.00
1.62
12-25.4
19.76
11.34
NPS-DN
G
G
W
15.75
W
15.75
Nominal Dimensions
