SRT-1000 SERIES

Material
CF8M
Body
1
Part
Material
CF8M
Cap
2
Part
Material
CF8M
Ball
3
Part
Material
PTFE
Seat
4
Part
Material
PTFE
Joint Gasket
5
Part
Material
AISI 304
Nut
6
Part
1000 PSI REDUCED PORT
316 Stainless Body
Floating Ball
Blow-Out Proof Stem
Locking Handle
Nace MR-0175 Compliant
Threads Conforms to ANSI B1.20.1, BS21, DN 259/2999

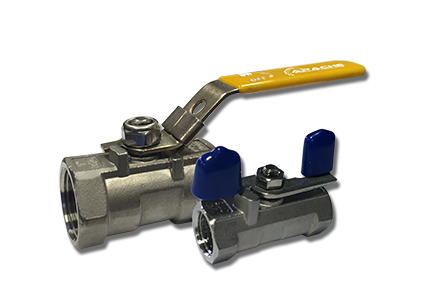

ONE-PIECE THREADED BALL VALVE
Material
PTFE
Stem Washer
8
Part
Material
PTFE
Packing
9
Part
Material
AISI 304
Gland Nut
10
Part
Material
AISI 304
Stem Nut
11
Part
Material
AISI 304
Spring Washer
12
Part
Material
AISI 304
Handle
13
Part
* 2.5" - 3" RATED 1,500 PSI. 4" RATED AT 1,000 PSI
Material
CF8M
Stem
7
Part
Material
PVC
Handle Sleeve
14
Part
* butterfly styled handle only available on 1/4"
PRESSURE TEMPERATURE RATING
1000
750
500
250
0
100
200
300
400
500
Temperature °F
Pressure, PSI
Part#
NPT
d(inch)
L
Lo
H
SRT1M0250R
1/4"
0.20
1.57
2.76
1.34
Part#
NPT
d(inch)
L
Lo
H
SRT1M0375R
3/8"
0.28
1.77
2.76
1.42
Part#
NPT
d(inch)
L
Lo
H
SRT1M0500R
1/2"
0.35
2.17
3.54
1.54
Part#
NPT
d(inch)
L
Lo
H
SRT1M0750R
3/4"
0.47
2.36
3.54
1.69
Part#
NPT
d(inch)
L
Lo
H
SRT1M1000R
1"
0.59
2.76
4.13
1.81
Part#
NPT
d(inch)
L
Lo
H
SRT1M1250R
1-1/4"
0.79
3.15
4.72
2.09
Part#
NPT
d(inch)
L
Lo
H
SRT1M1500R
1-1/2"
0.98
3.39

5.12
2.32
NPT
d(inch)
L
Lo
H
SRT1M2000R
2"
1.26
4.02

5.51
2.56
Part#
