S-Series

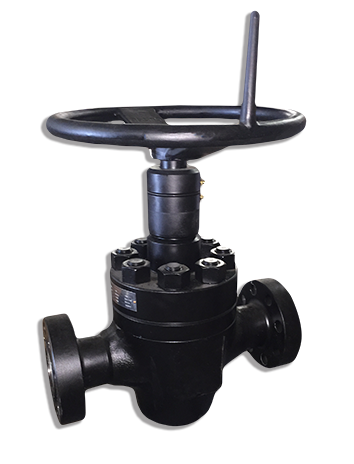

The Apache forged body slab gate valve is a bi-directional slab gate valve designed for oil & gas wellheads, production trees, fracking, and critical applications with operating pressure from 2,000 ~ 15,000 psi and sizes ranging from 1 13/16" ~ 7 1/16"
Apache slab gate valves come in a variety of sizes, pressures and trim levels. Please consult trim charts or specify well conditions at time of inquiry for the best trim and PSL level for your application.
Apache slab gate valves come in a variety of sizes, pressures and trim levels. Please consult trim charts or specify well conditions at time of inquiry for the best trim and PSL level for your application.

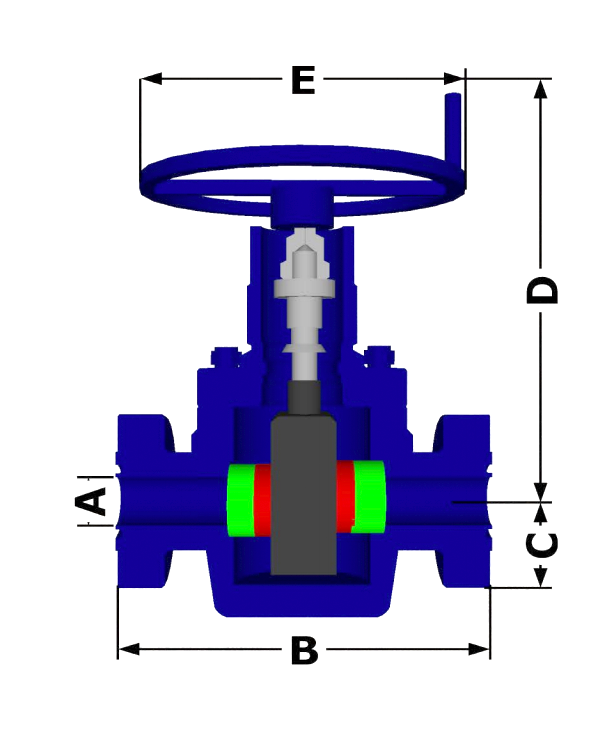

GATE VALVE
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
API Ring
Wt (lbs)
2-1/16"
2.06
14.62
5.1
15.5
13.5
R-24
216
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
API Ring
Wt (lbs)
2-9/16"
2.56
16.62
5.9
16.5
13.5
R-27
289
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
API Ring
Wt (lbs)
3-1/8"
3.12
18.62
6.7
17.4
17
R-35
419
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
API Ring
Wt (lbs)
4-1/16"
4.06
21.62
8.3
19.1
17
R-39
688
Flanged 5,000 psi working Pressure
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
API Ring
Wt (lbs)
5-1/8"
5.12
28.62
11
24.4
18.75
R-44
1387
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
API Ring
Wt (lbs)
7-1/16"x6"
6
29
14.8
27.1
25
R-46
2106
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
API Ring
Wt (lbs)
7-1/16" x 6-3/8"
6.38
29
15
27.3
25
R-46
2132
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
API Ring
Wt (lbs)
7-1/16"
7.06
32
15.3
27.6
25
R-46
2187
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
API Ring
Wt (lbs)
1-13/16"
1.81
18.25
5.6
14.8
17
BX-151
243
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
API Ring
Wt (lbs)
2-1/16"
2.06
20.5
6.1
15.5
17
BX-152
329
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
API Ring
Wt (lbs)
2-9/16"
2.56
22.25
6.8
16.5
17
BX-153
410
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
API Ring
Wt (lbs)
3-1/16"
3.06
24.38
7.9
17.4
18.75
BX-154
518
Flanged 10,000 psi working Pressure
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
API Ring
Wt (lbs)
4-1/16"
4.06
26.38
9.8
19.1
18.75
BX-155
1118
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
API Ring
Wt (lbs)
5-1/8"
5.12
29
12.7
24.4
25
BX-169
1528
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
API Ring
Wt (lbs)
1-13/16"
1.81
18
5.9
14.8
17
BX-151
260
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
API Ring
Wt (lbs)
2-1/16"
2.06
19
6.5
15.5
17
BX-152
315
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
API Ring
Wt (lbs)
2-9/16"
2.56
21
7.7
16.5
18.75
BX-153
576
Size
A (Bore, inch)
B (inch)
C (inch)
D (inch)
E (inch)
API Ring
Wt (lbs)
3-1/16"
3.06
23.56
9
17.4
18.75
BX-154
602
Flanged 15,000 psi working Pressure
