TR 150A SERIES

Material
A216 WCB
Body
1
Part
Material
A216 WCB
Bonnet
2
Part
Material
A105+ENP
Ball
3
Part
Material
A105+ENP
Seat
4
Part
Material
A105+ENP
Stem
5
Part
Material
A105+ENP
Lower Cover
6
Part
Material
CS
Adapter
7
Part

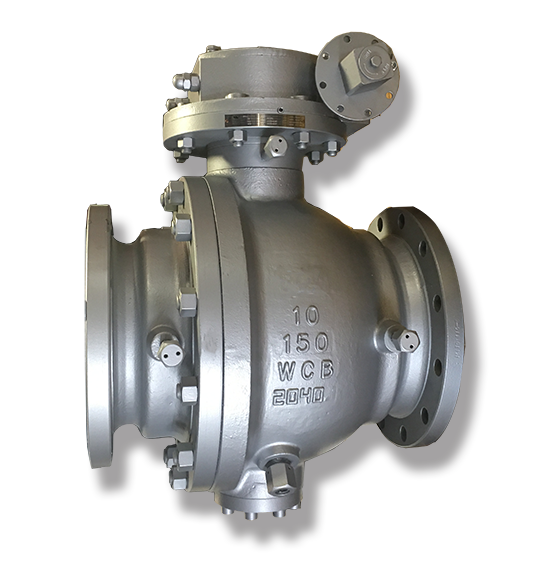

FLANGED BALL VALVE
Material
RPTFE
Seat Ring
8
Part
Material
304+Graphite
F.S Washer
9
Part
Material
304+Graphite
F.S Washer
10
Part
Material
Viton
O-Ring
17
Part
Material
Viton
O-Ring
18
Part
Material
A193 B7M
Screw
19
Part
Material
A193 B7M
Screw
20
Part
Material
A193 B7M
Bolt
21
Part
Material
A193 B7M
Nut
22
Part
Material
A105+ENP
Upper Cover
23
Part
Material
A193 B7M
Screw
24
Part
Material
Inconel X-750
Spring
25
Part
Material
304+Graphite
F.S Washer
11
Part
Material
A276 316
Spring
26
Part
Material
CS-PTFE
Redial Bearing
27
Part
Material
304+Graphite
F.S Washer
12
Part
Material
304+Graphite
F.S Washer
13
Part
Material
Viton
O-Ring
14
Part
Material
Viton
O-Ring
15
Part
Material
CS-PTFE
Redial Bearing
28
Part
Material
CS+Zn
Injection Fitting
29
Part
Material
CS+Zn
Drain Valve
30
Part
Material
Viton
O-Ring
16
Part
Material
CS+Zn
Injection Fitting
31
Part
in
mm
L
R
C
O
n-d
T
W
8
200
17.99
7.95
10.63
11.75
13.58
8-22.5
1.06
15.75
in
mm
L
R
C
O
n-d
T
W
10
250
20.98
9.92
12.75
14.25
15.94
12-25.5
1.13
21.65
in
mm
L
R
C
O
n-d
T
W
12
300
24.02
11.93
15.00
17.00
19.09
12-25.5
1.19
23.62
NPS-DN
D
D
D
H
5.51
H
6.93
H
7.72
Nominal Dimensions
