TR-600A Series

Material
A216 WCB
Body
1
Part
Material
A216 WCB
Bonnet
2
Part
Material
A105+ENP
Ball
3
Part
Material
A105+ENP
Seat
4
Part
Material
A105+ENP
Stem
5
Part
Material
A105+ENP
Lower Cover
6
Part
Material
A105+ENP
Upper Cover
7
Part

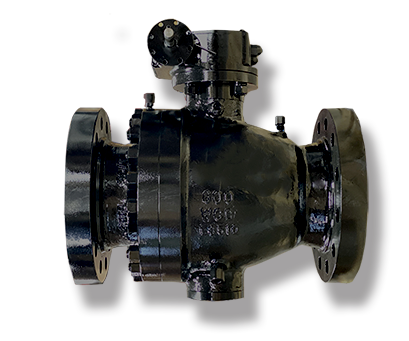

FLANGED BALL VALVE
Material
Nylon
Seat Ring
8
Part
Material
304+Graphite
F.S Washer
9
Part
Material
304+Graphite
F.S Washer
10
Part
Material
Viton
O-Ring
17
Part
Material
Viton
O-Ring
18
Part
Material
A193 B7M
Screw
19
Part
Material
A193 B7M
Screw
20
Part
Material
A193 B7M
Bolt
21
Part
Material
A194 2HM
Nut
22
Part
Material
A276 410
Seal Ring
23
Part
Material
A276 420
Segment
24
Part
Material
Inconel X-750
Spring
25
Part
Material
304+Graphite
F.S Washer
11
Part
Material
A276 316
Spring
26
Part
Material
CS-PTFE
Redial Bearing
27
Part
Material
304+Graphite
F.S Washer
12
Part
Material
304+Graphite
F.S Washer
13
Part
Material
Viton
O-Ring
14
Part
Material
Viton
O-Ring
15
Part
Material
CS-PTFE
Redial Bearing
28
Part
Material
CS+Zn
Injection Fitting
29
Part
Material
CS+Zn
Drain Valve
30
Part
Material
Viton
O-Ring
16
Part
Material
CS+Zn
Injection Fitting
31
Part
in
mm
L
R
C
O
n-d
T
W
6
150
22.01
5.98
8.50
11.50
13.98
12-28.5
1.88
23.62
in
mm
L
R
C
O
n-d
T
W
8
200
25.98
9.92
10.63
13.75
16.50
12-32
2.19
23.62
in
mm
L
R
C
O
n-d
T
W
10
250
30.98
9.92
12.75
17.00
20.08
16-35
2.50
23.62
NPS-DN
D
D
D
H
10.83
H
13.70
H
15.75
Nominal Dimensions
