CFT-2000 SERIES

Material
A216-WCB
Body
1
Part
Material
A216-WCB
Cap
2
Part
Material
AISI 316
Ball
3
Part
Material
PTFE/RTFE
Seat
4
Part
Material
PTFE
Joint Gasket
5
Part
Material
AISI 316
Stem
6
Part
2000 PSI* FULL PORT
Cast Steel Body
Floating Ball
Blow-Out Proof Stem
Locking Handle
Nace MR-0175 Compliant
Threads Conforms to ANSI B1.20.1, BS21, DN 259/2999

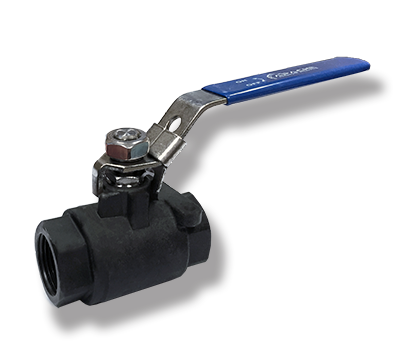

TWO-PIECE 2000 PSI FULL PORT BALL VALVE
Material
PTFE
Stem Packing
8
Part
Material
ASTM A2-70
Gland Nut
9
Part
Material
AISI 304
Spring Washer
10
Part
Material
AISI 304
Stem Nut
11
Part
Material
AISI 304
Handle
12
Part
Material
AISI 304
Locking Device
13
Part
* 2.5" - 3" RATED 1,500 PSI. 4" RATED AT 1,000 PSI
Material
PTFE
Thrust Washer
7
Part
Material
PVC
Handle Sleeve
14
Part
PRESSURE TEMPERATURE RATING
2500
2000
1500
1000
500
0
100
200
300
400
500
Temperature °F
Pressure, PSI
Part#
NPT
A (inch)
B
C
D
CFT2M0250F
1/4"
0.46
2.35
1.97
3.94
Part#
NPT
A (inch)
B
C
D
CFT2M0375F
3/8"
0.50
2.35
1.97
3.94
Part#
NPT
A (inch)
B
C
D
CFT2M0500F
1/2"
0.51
2.51
1.97
3.94
Part#
NPT
A (inch)
B
C
D
CFT2M0750F
3/4"
0.79
2.95
2.36
4.92
Part#
NPT
A (inch)
B
C
D
CFT2M1000F
1"
0.98
3.55
2.76
6.30
Part#
NPT
A (inch)
B
C
D
CFT2M1250F
1-1/4"
1.26
4.02
3.15
6.30
Part#
NPT
A (inch)
B
C
D
CFT2M1500F
1-1/2"
1.50
4.56
3.54
7.48
NPT
A (inch)
B
C
D
CFT2M2000F
2"
1.97
5.42
3.54
7.48
Part#
Part#
NPT
A (inch)
B
C
D
CFT2M2500F
2-1/2"
2.56
6.22
4.80
8.66
Part#
NPT
A (inch)
B
C
D
CFT2M3000F
3"
3.15
7.51
9.24
9.84
Part#
NPT
A (inch)
B
C
D
CFT2M4000F
4"
3.94
8.94
6.38
12.60
