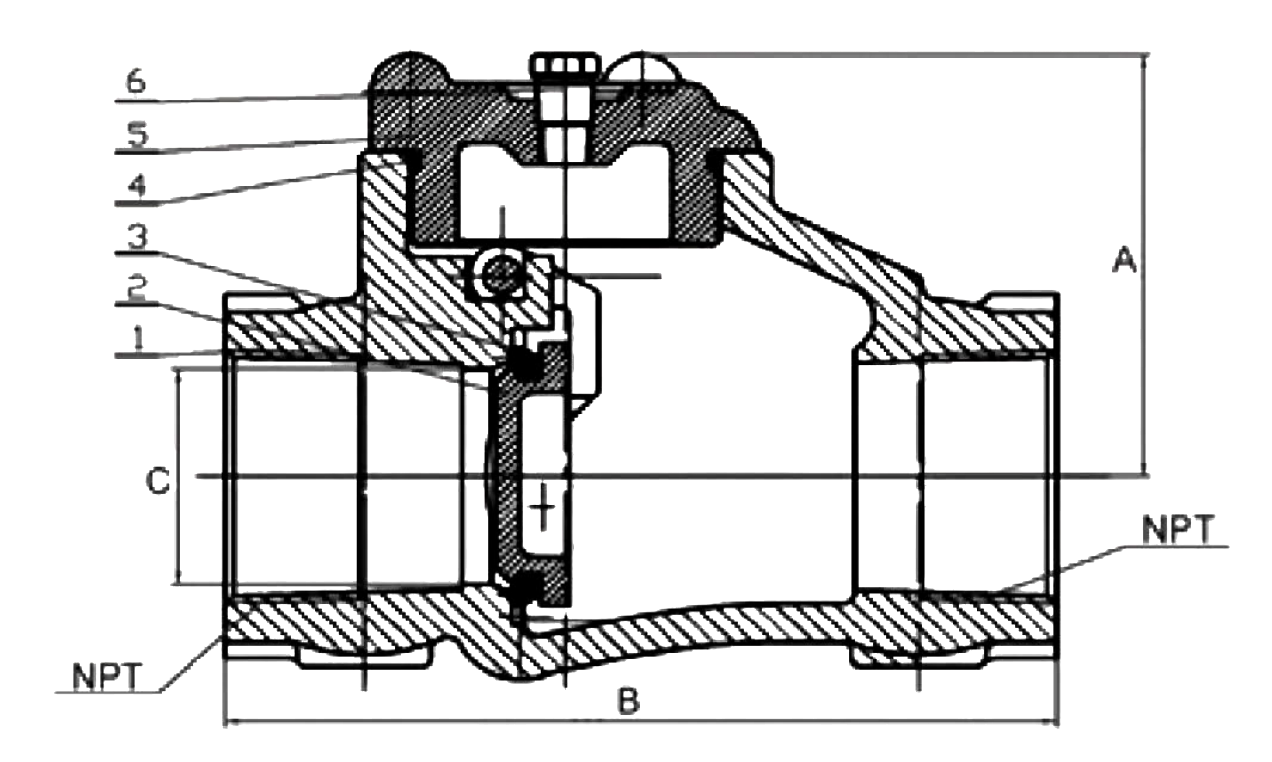

Material

A216 WCB

Body

1

Part

Material

304SS

Disc

2

Part

Material

Viton

O'ring

3

Part

Material

Buna

Gasket

4

Part

Material

A216 WCB

Bonnet

5

Part

Carbon Steel Body
Swing Check
Up to 5000 WOG
Nace MR-0175 Compliant
Threads Conforms to ANSI B1.20.1, BS21, DN 259/2999

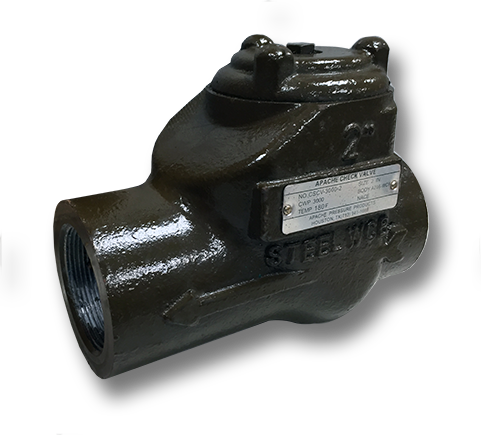

SWING CHECK VALVE

Part#

NPT

WP (PSI)

A(INCH)

CSCV-3000-1

1"

3000

3.03

Part#

NPT

WP (PSI)

A(INCH)

CSCV-5000-1

1"

5000

3.03

Part#

NPT

WP (PSI)

A(INCH)

CSCVL-3000-2

2"*LB

3000

3.94

Part#

NPT

WP (PSI)

A(INCH)

CSCV-5000-2

2"

5000

3.94

4.72

B

4.72

B

7.33

B

6.30

C

1.00

C

1.00

C

2.01

C

2.01

*LB DENOTES EXTENDED LONG BODY
