DIBV-B SERIES

Material
ASTM A395
Body
1
Part
Material
ASTM A395
Bonnet
2
Part
Material
420SS
Stem
3
Part
Material
420SS
Ball
4
Part
Material
Viton
Body Seal
5
Part
Material
PTFE
Stem Bearing
6
Part
Ductile Iron Body
Floating Ball
Color Coded, Up to 5000 WOG
Blow-Out Proof Stem
Locking Plate
Grease Fitting
Nace MR-0175 Compliant
Threads Conforms to ANSI B1.20.1 BS21, DN 259/2999

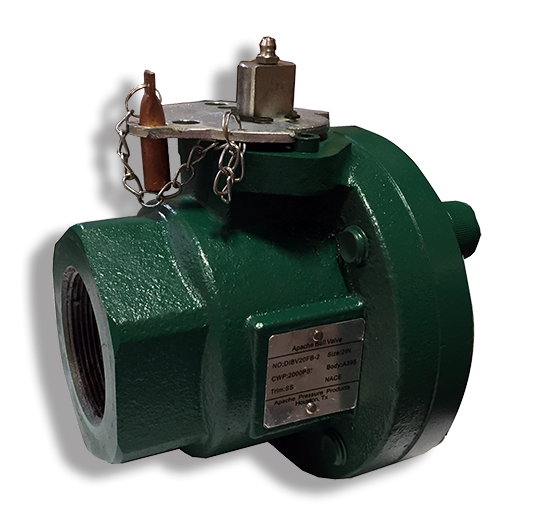

BOLTED BODY OILFIELD BALL VALVE
Material
Delrin
Seat
7
Part
Material
Steel
Stop
8
Part
Material
Viton
Stem Seal
9
Part
Material
PTFE
Thrust Bearing
10
Part
Material
Ductile Iron
Handle
11
Part
Material
Steel
Stop Plate
12
Part
Material
Spring Steel
Stem Bearing
13
Part
Material
ASTM A 193 B7M
Body Bolts
14
Part

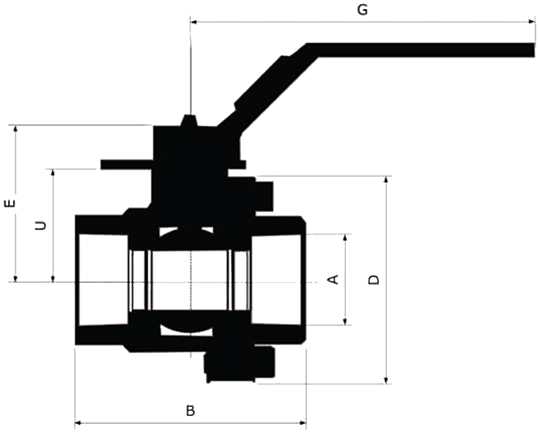

Part#
NPT
Color
WP (PSI)
B
D
E
CSBV30FB-1
1" FP
Brown
1000
4.00
3.30
2.50
Part#
NPT
Color
WP (PSI)
B
D
E
CSBV30RT-2
2" RP
Brown
3000
5.50
5.13
3.66
A (INCH)
1.00
A (INCH)
1.50
Part#
NPT
Color
WP (PSI)
B
D
E
CSBV50RT-2
2" RP
Red
5000
5.50
5.13
3.66
A (INCH)
1.50
U
G
1.72
6.25
U
G
2.63
8.50
U
G
2.63
8.50
