MP6 SERIES

Material Carbon
304SS
Bonnet Pin
1
Part
Material Carbon
316SS
Stem
2
Part
Material Carbon
AISI 1045+ZINC PL
Tee Handle
3
Part
Material Carbon
410SS
Handle Nut
4
Part
Material Carbon
AISI 1045+ZINC PL
Bonnet
5
Part
Material Carbon
VITON
O'ring
6
Part
Material Carbon
Delrin / Peek
Seat
7
Part
Carbon or Stainless Body
6000 PSI CWP
Gate Style
MNPT X FNPT
Delrin Seats
2 X 1/2" NPT Ports
Nace MR-0157 Compliant

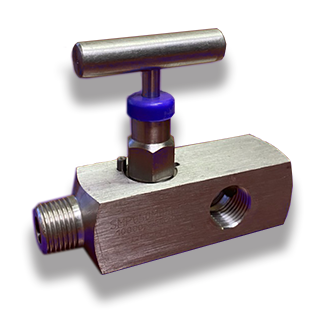

6000 PSI MULTIPORT NEEDLE VALVE
Material Carbon
VITON
O'ring
8
Part
Material Carbon
AISI 1045+ZINC PL
Body
9
Part
Material Carbon
NBR (RED)
Nut
10
Part
Material Stainless
304SS
Material Stainless
316SS
Material Stainless
A182 F6a
Material Stainless
410SS
Material Stainless
316SS
Material Stainless
VITON
Material Stainless
Delrin / Peek
Material Stainless
VITON
Material Stainless
316SS
Material Stainless
NBR (RED)
PRESSURE TEMPERATURE RATING
6000
4800
3600
2400
1200
0
100
200
300
400
500
Temperature °F
Pressure, PSI

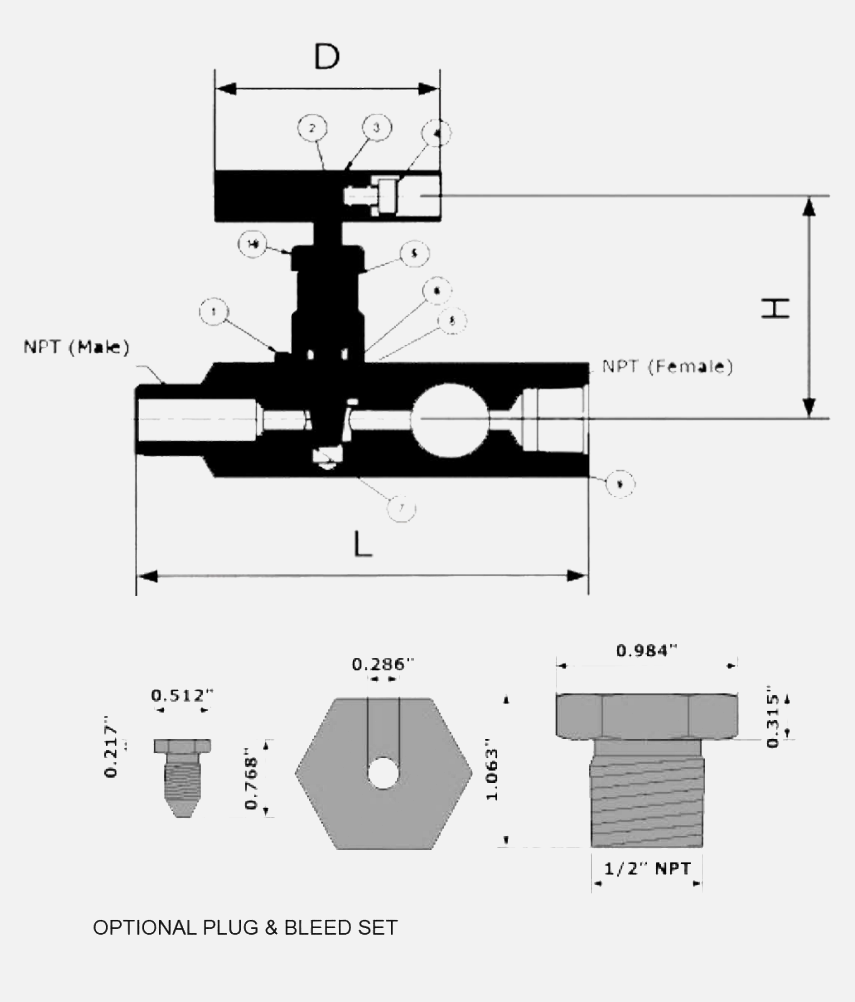

Part#
Material
NPT
NPT
L
D
H
CMP050M050F06
Carbon Steel
1/2" MNPT
1/2" FNPT
4.47
2.37
2.65
Part#
Material
NPT
NPT
L
D
H
SMP050M050F06
Stainless Steel
1/2" FNPT
1/2" FNPT
4.47
2.37
2.65
