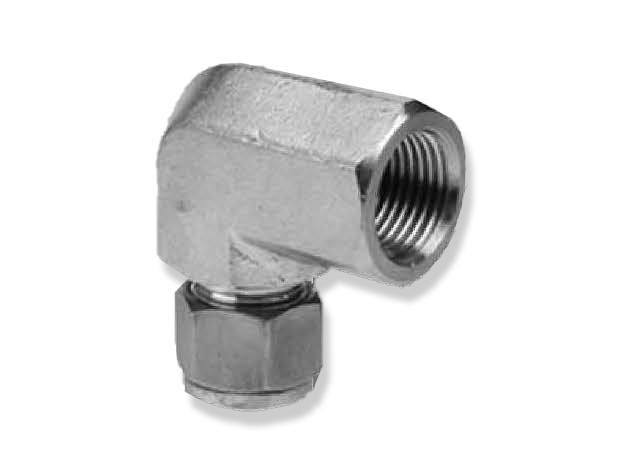

90 DEGREE FEMALE ELBOW

Fitting

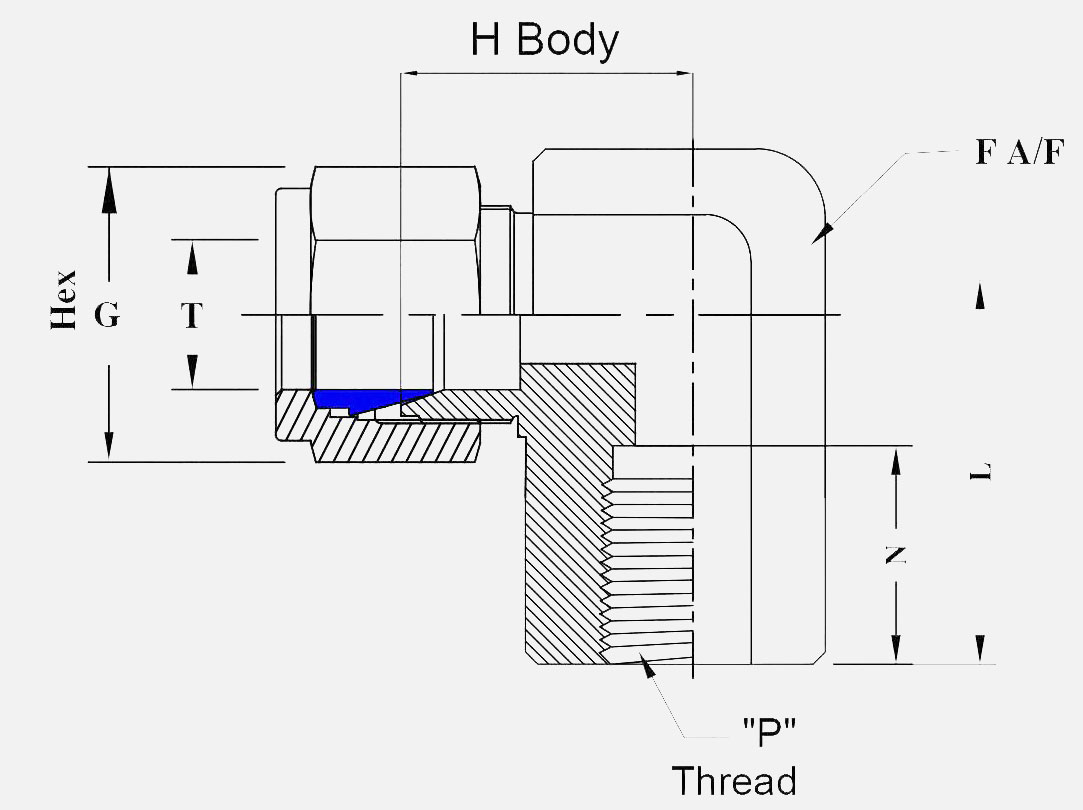

Part #
T(OD)
P(Thread)
N
L
H
G
F
DF90FEC-4-4
1/4" T(6.35)
1/4"F NPT
14
24.5
24
14
21
Part #
T(OD)
P(Thread)
N
L
H
G
F
DF90FEC-6-4
3/8" T(9.52)
1/4"F NPT
14
24.5
24
17
21
Part #
T(OD)
P(Thread)
N
L
H
G
F
DF90FEC-6-6
3/8" T(9.52)
3/8"F NPT
14
26
24
17
22.5
Part #
T(OD)
P(Thread)
N
L
H
G
F
DF90FEC-4-6
1/4" T(9.52)
3/8"F NPT
14
26
24
14
22.5
