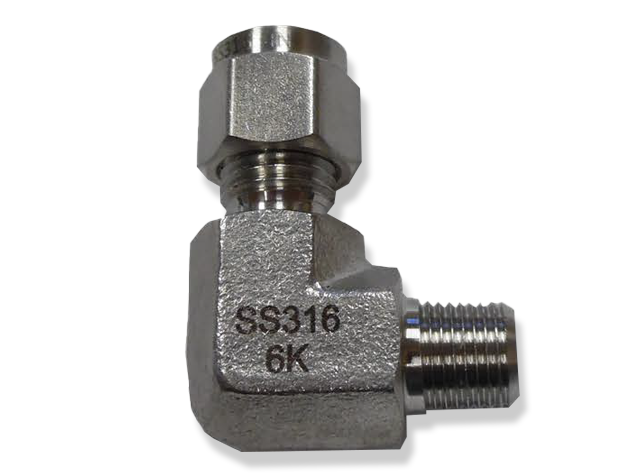

90 DEGREE MALE ELBOW CONNECTOR

Fitting
Part #
T(OD)
P(Thread)
N
L
H
G
F
DF90MEC-4-2
1/4" T(6.35)
1/8"M NPT
10
22.5
22.5
14
15
Part #
T(OD)
P(Thread)
N
L
H
G
F
DF90MEC-4-4
1/4" T(6.35)
1/4"M NPT
14
27.5
22.5
14
15
Part #
T(OD)
P(Thread)
N
L
H
G
F
DF90MEC-4-6
1/4" T(6.35)
3/8"M NPT
14
27.5
27
14
20.5
Part #
T(OD)
P(Thread)
N
L
H
G
F
DF90MEC-4-8
1/4" T(6.35)
1/2"M NPT
19
33
23
14
22
Part #
T(OD)
P(Thread)
N
L
H
G
F
DF90MEC-6-2
3/8" T(9,52)
1/8"M NPT
14
22
24
17
17.5
Part #
T(OD)
P(Thread)
N
L
H
G
F
DF90MEC-6-4
3/8" T(9,52)
1/4"M NPT
14
27.5
24
17
17.5
Part #
T(OD)
P(Thread)
N
L
H
G
F
DF90MEC-6-6
3/8" T(9,52)
3/8"M NPT
14
27.5
26
20.5
Part #
T(OD)
P(Thread)
N
L
H
G
F
DF90MEC-6-8
3/8" T(9,52)
1/2"M NPT
19
33
26
17
Part #
T(OD)
P(Thread)
N
L
H
G
F
DF90MEC-8-4
1/2" T(12,7)
1/4"M NPT
14
26
27
22
20.5
17
22
Part #
T(OD)
P(Thread)
N
L
H
G
F
DF90MEC-8-6
1/2" T(12,7)
3/8"M NPT
14
32
27
22
Part #
T(OD)
P(Thread)
N
L
H
G
F
DF90MEC-8-8
1/2" T(12,7)
1/2"M NPT
19
32
27
22
22.5
20.5
Part #
T(OD)
P(Thread)
N
L
H
G
F
DF90MEC-8-12
1/2" T(12,7)
3/4"M NPT
19
42
31
22
27.5
