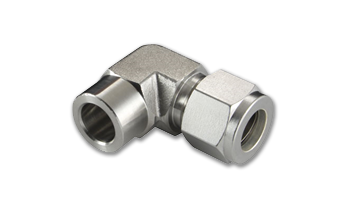

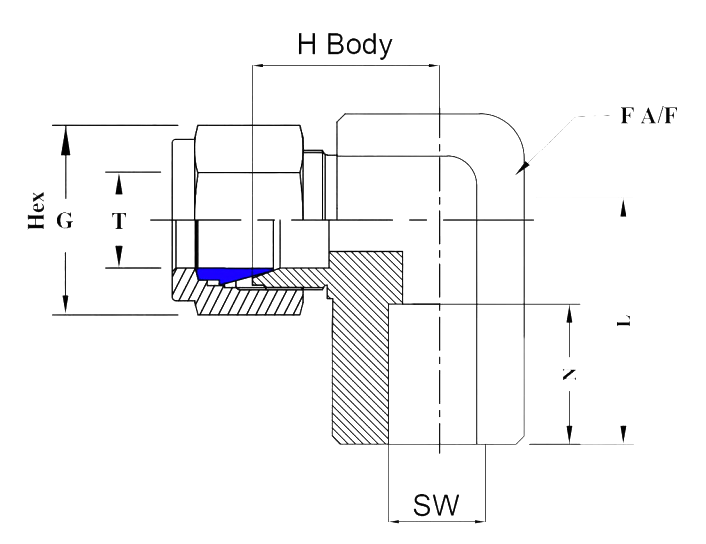

90 DEGREE SOCKET WELD ELBOW

Part #
T(OD)
SW
N
L
H
G
F
DF9OSWE-4-4
1/4"T (6.35)
1/4" SW
8
20.5
20.5
14
15.5
Part #
T(OD)
SW
N
L
H
G
F
DFSOSWE-6-6
3/8" T(9.52)
3/8" SW
8
22.5
22.5
17
17.5
Part #
T(OD)
SW
N
L
H
G
F
DFSOSWE-8-8
1/2"T (12.7)
1/2" SW
10
27
27
22
20.5
Part #
T(OD)
SW
N
L
H
G
F
SF9OSWE-4-4
1/4"T (6.35)
1/4" SW
8
20.5
20.5
14
15.5
Part #
T(OD)
SW
N
L
H
G
F
SF9OSWE-6-6
3/8" T(9.52)
3/8" SW
8
22.5
22.5
17
17.5
Part #
T(OD)
SW
N
L
H
G
F
SF9OSWE-8-8
1/2"T (12.7)
1/2" SW
10
27
27
22
20.5
ALL DIMENSIONS ARE IN MILLIMETERS UNLESS OTHERWISE SPECIFIED. DIMENSIONS ARE FOR REFERENCE ONLY, SUBJECT TO CHANGE.
