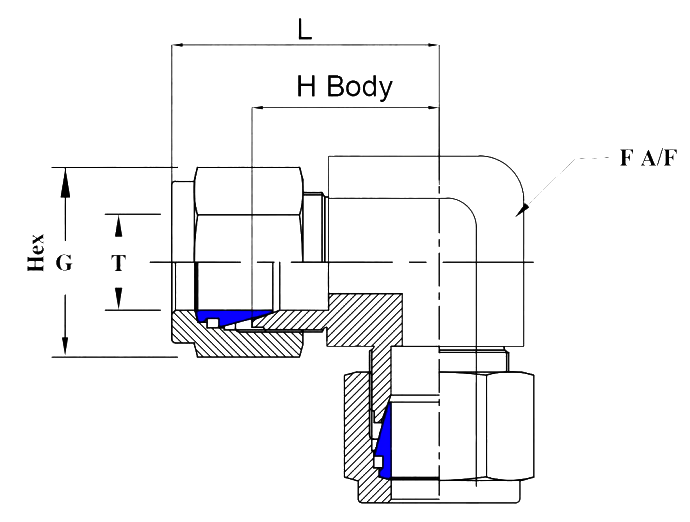

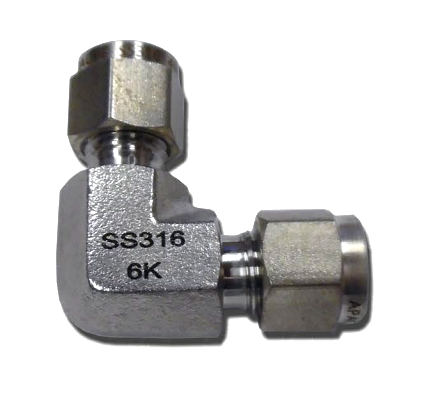

90 DEGREE UNION ELBOW

Fitting
Part #
T(OD)
L
H
G
F
DF9OUE-4-4
1/4"T (6.35)
28.5
22.5
14
15.5
Part #
T(OD)
L
H
G
F
DF9OUE-6-6
3/8" T(9.52)
30
24.5
17
17.5
Part #
T(OD)
L
H
G
F
DF9OUE-8-8
1/2"T (12.7)
35.5
25.5
22
20.5
Part #
T(OD)
L
H
G
F
SF9OUE-4-4
1/4"T (6.35)
28.5
22.5
14
15.5
Part #
T(OD)
L
H
G
F
SF9OUE-6-6
3/8" T(9.52)
30
24.5
17
17.5
Part #
T(OD)
L
H
G
F
SF9OUE-8-8
1/2"T (12.7)
35.5
25.5
22
20.5
ALL DIMENSIONS ARE IN MILLIMETERS UNLESS OTHERWISE SPECIFIED. DIMENSIONS ARE FOR REFERENCE ONLY, SUBJECT TO CHANGE.
