Material

WCB

Body

1

Part

Material

WCB

Cap

2

Part

Material

CF8M

Ball

3

Part

Material

Peek

Seat

4

Part

Material

Graphite

Joint Gasket

5

Part

Material

SS316

Stem

6

Part

Full Port up to 2"*
Cast Steel Body
Floating Ball
ASME B16.34 CLASS 2500, 6000 WOG
Fire Safe API 607
Blow-Out Proof Stem

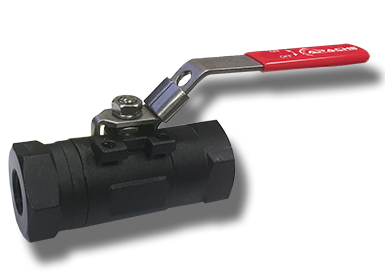

TWO-PIECE CLASS 2500 THREADED BALL VALVE

Material

Graphite

Stem Packing

8

Part

Material

AISI 304

Gland Nut

9

Part

Material

AISI 304

Spring Washer

10

Part

Material

AISI 304

Stem Nut

11

Part

Material

AISI 304

Handle

12

Part

Material

AISI 304

Locking Device

13

Part

* 2" AVAILABLE IN STANDARD PORT ONLY

Material

Peek

Thrust Washer

7

Part

Material

PVC

Handle Sleeve

14

Part

ISO 5211 Mounting Pad
Locking Handle
Nace MR-0175 Compliant
Threads Conforms to ANSI B1.20.1, BS21, DN 259/2999

or 17-4 (1-1/2", 2")

PRESSURE TEMPERATURE RATING

6000

4800

3600

2400

1200

0

100

200

300

400

500

Temperature °F

Pressure, PSI

Part#

NPT

A (inch)

B

C

D

CFT6M0250F

1/4"

0.25

3.00

2.22

5.00

Part#

NPT

A (inch)

B

C

D

CFT6M0500F

1/2"

0.50

4.00

2.22

5.00

Part#

NPT

A (inch)

B

C

D

CFT6M0750F

3/4"

0.75

4.30

2.89

5.83

Part#

NPT

A (inch)

B

C

D

CFT6M1000F

1"

1.00

4.80

3.50

8.19

Part#

NPT

A (inch)

B

C

D

CFT6M1500F

1-1/2"

1.50

5.30

4.34

10.16

Part#

NPT

A (inch)

B

C

D

CFT6M2000R

2"

1.50

6.30

4.34

10.16
