CRT-2000 SERIES
Material
ASTM A105
Body
1
Part
Material
ASTM A105
Cap
2
Part
Material
RPTFE
Seat
3
Part
Material
AISI 304
Ball
4
Part
Material
PTFE
Joint Gasket
5
Part
Material
PTFE
Thrust Washer
6
Part
Forget Steel Body
Floating Ball
Blow-Out Proof Stem
Nace MR-0175 Compliant
Threads Conforms to
ANSI B1.20.1, BS21,
DN 259/2999
Floating Ball
Blow-Out Proof Stem
Nace MR-0175 Compliant
Threads Conforms to
ANSI B1.20.1, BS21,
DN 259/2999

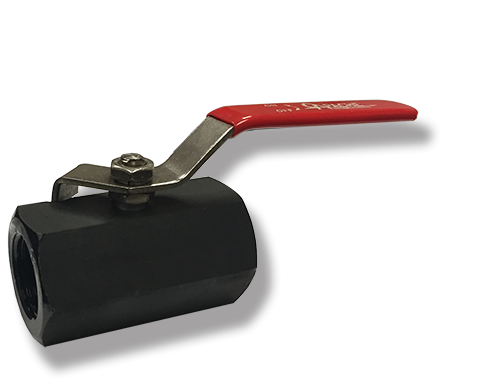

ONE-PIECE 2000 PSI REDUCED
PORT THREADED BALL VALVE
PORT THREADED BALL VALVE
Material
AISI 316
Stem
7
Part
Material
PTFE
Stem Packing
8
Part
Material
A194 Gr. 8
Gland Nut
9
Part
Material
AISI 304
Handle
10
Part
Material
AISI 304
Washer
11
Part
Material
PVC
Handle Sleeve
12
Part
PRESSURE TEMPERATURE RATING
2500
2000
1500
1000
500
0
100
200
300
400
500
Temperature °F
Pressure, PSI
Part#
NPT
L (IN)
D
H
W
CRT2M0250R
1/4"
1.69
0.20
1.34
2.16
Part#
NPT
L (IN)
D
H
W
CRT2M0375R
3/8"
1.85
0.28
1.46
2.76
Part#
NPT
L (IN)
D
H
W
CRT2M0500R
1/2"
2.46
0.35
2.36
4.72
Part#
NPT
L (IN)
D
H
W
CRT2M0750R
3/4"
2.76
0.49
2.52
4.72
Part#
NPT
L (IN)
D
H
W
CRT2M1000R
1"
3.39
0.63
2.60
4.84
Part#
NPT
L (IN)
D
H
W
CRT2M1250R
1-1/4"
3.70
0.79
3.07
5.71
Part#
NPT
L (IN)
D
H
W
CRT2M1500R
1-1/2"
4.02
0.96
3.31
5.91
NPT
L (IN)
D
H
W
CRT2M2000R
2"
4.53
1.26
3.58
5.91
Part#
