Material

A216 WCB

Body

1

Part

Material

A216 WCB

Bonnet

2

Part

Material

420SS

Stem

3

Part

Material

420SS

Ball

4

Part

Material

Viton

Body Seal

5

Part

Material

PTFE

Stem Bearing

6

Part

Carbon Steel Body
Floating Ball
Color Coded, Up to 5000 WOG
Blow-Out Proof Stem
Grease Fitting
Nace MR-0175 Compliant
Threads Conforms to ANSI B1.20.1
BS21, DN 259/2999

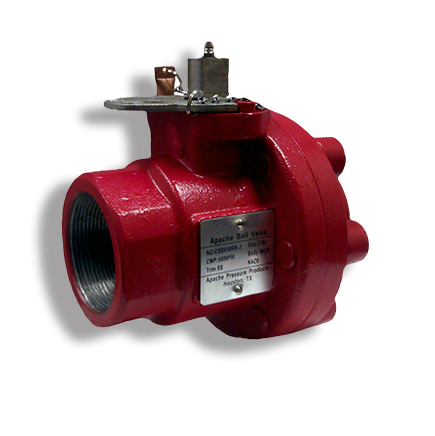

BOLTED BODY OILFIELD BALL VALVE

Material

Delrin

Seat

7

Part

Material

Steel

Stop

8

Part

Material

Viton

Stem Seal

9

Part

Material

PTFE

Thrust Bearing

10

Part

Material

Ductile Iron

Handle

11

Part

Material

Steel

Stop Plate

12

Part

Material

Spring Steel

Stem Bearing

13

Part

Material

ASTM A 193 B7M

Body Bolts

14

Part

Part#

NPT

Color

WP (PSI)

B

D

E

CSBV30FB-1

1" FP

Brown

1000

4.00

3.30

2.50

Part#

NPT

Color

WP (PSI)

B

D

E

CSBV30RT-2

2" RP

Brown

3000

5.50

5.13

3.66

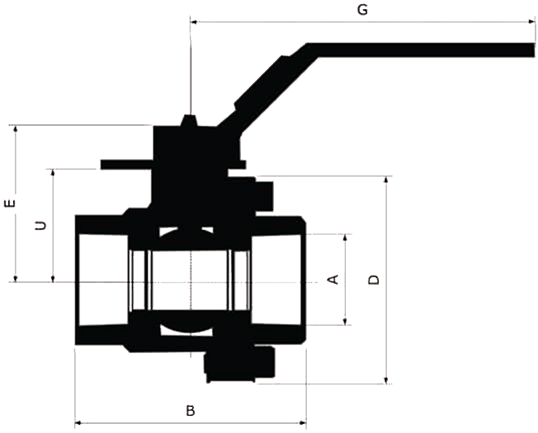

A (INCH)

1.00

A (INCH)

1.50

Part#

NPT

Color

WP (PSI)

B

D

E

CSBV50RT-2

2" RP

Red

5000

5.50

5.13

3.66

A (INCH)

1.50

U

G

1.72

6.25

U

G

2.63

8.50

U

G

2.63

8.50
