FGV SERIES

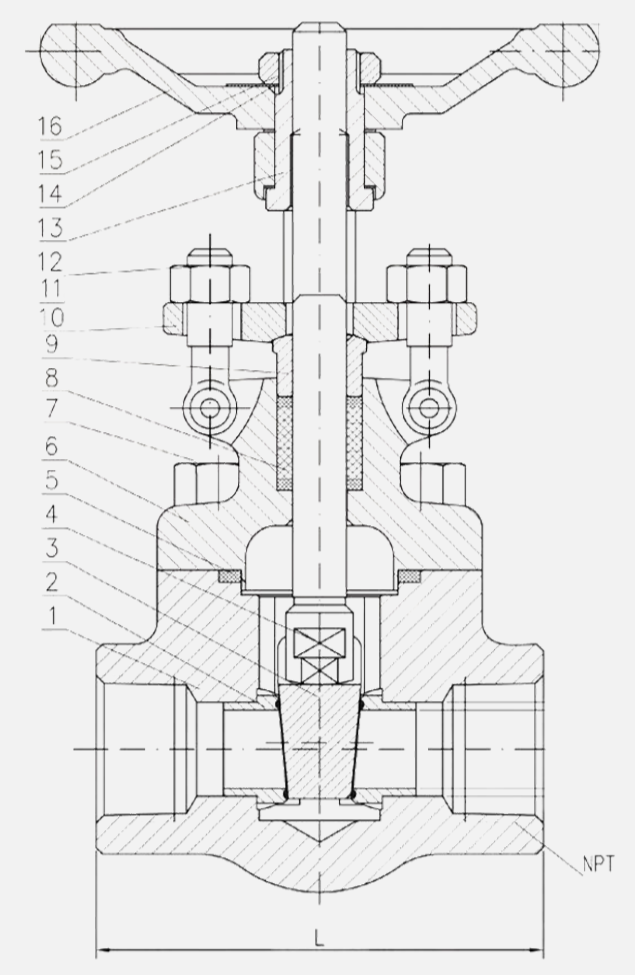

Material
ASTM A105N
Body
1
Part
Material
A182 F6a
Seat
2
Part
Material
A182 F6a
Disc
3
Part
Material
A182 F6a
Stem
4
Part
Material
SS+Flex Graphite
Gasket
5
Part
Material
ASTM A105N
Bonnet
6
Part
A105 Forged Steel Body
CR13 Stainless Trim
Design API 602
Fire Safe API 607
Nace MR-0157 Compliant
Threads Conforms to ANSI B1.20.1, BS21, DN 259/2999

FORGED STEEL CLASS 800

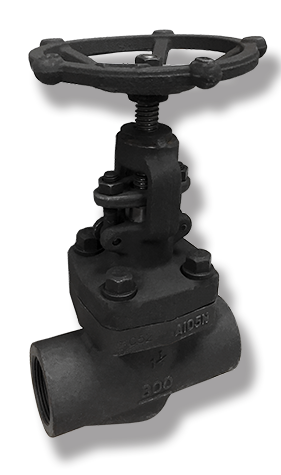

GATE VALVE
Material
ASTM A193 B7M
Bolt
7
Part
Material
Flex Graphite
Packing
8
Part
Material
ASTM A276 410
Gland
9
Part
Material
ASTM A105N
Gland Flange
10
Part
Material
ASTM A193 B7M
Eyebolt
11
Part
Material
ASTM A194 2H
Nut
12
Part
Material
AISI 1035
Stem Nut
13
Part
Material
SS304
NamePlate
14
Part
Material
Carbon Steel
Handwheel Nut
15
Part
Material
ASTM A197
Handwheel
16
Part

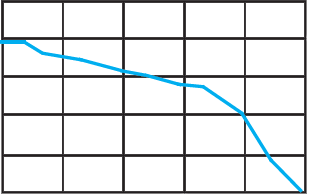

PRESSURE TEMPERATURE RATING
2500
2000
1500
1000
500
0
100
200
300
400
500
Temperature °F
Pressure, PSI
Part#
NPT
NPS
L
FGV2M0500
1/2"
1/2"
1/4" FNPT
Part#
NPT
NPS
L
FGV2M0750
3/4"
3/4"
1/4" FNPT
Part#
NPT
NPS
L
FGV2M1000
1"
1"
1/2" FNPT
Part#
NPT
NPS
L
FGV2M1250
1-1/2"
1-1/2"
1/2" FNPT
Part#
NPT
NPS
L
FGV2M2000
2"
2"
3/4" FNPT
