FSC SERIES

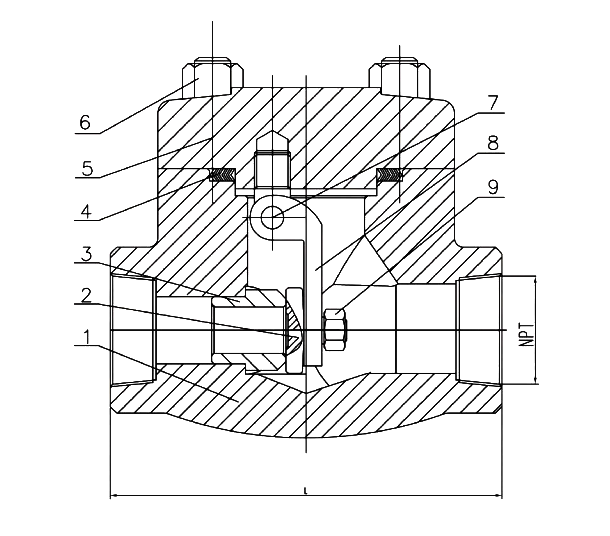

Material
A105
Body
1
Part
Material
A182 F6a
Disc
2
Part
Material
A182 F6a
Seat
3
Part
Material
SS+Flex Graphite
Gasket
4
Part
Material
A105
Bonnet
5
Part
Material
ASTM A193 B7M
Bolt
6
Part
A105 Forged Steel Body
CR13 Stainless Trim
Design API 602
Fire Safe API 607
Nace MR-0157 Compliant
Threads Conforms to ANSI B1.20.1, BS21, DN 259/2999

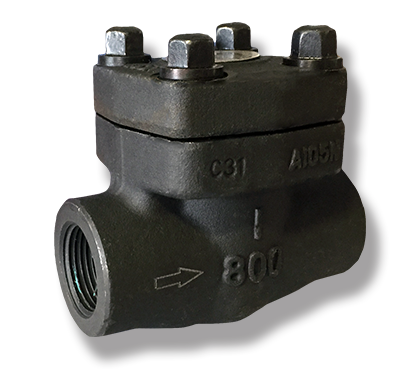

FORGED STEEL CLASS 800
SWING CHECK VALVE
Material
Peek
Pin
7
Part
Material
Graphite
Hinge
8
Part
Material
AISI 304
Nut
9
Part
PRESSURE TEMPERATURE RATING
2500
2000
1500
1000
500
0
100
200
300
400
500
Temperature °F
Pressure, PSI
Part#
NPT
NPS
L
FSC2M0500
1/2"
1/2"
3.11
Part#
NPT
NPS
L
FSC2M0750
3/4"
3/4"
3.62
Part#
NPT
NPS
L
FSC2M1000
1"
1"
4.37
Part#
NPT
NPS
L
FSC2M1500
1-1/2"
1-1/2"
5.98
Part#
NPT
NPS
L
FSC2M2000
2"
2"
6.77
