NV6 SERIES

Material Carbon
304SS
Bonnet Pin
1
Part
Material Carbon
316SS
Stem
2
Part
Material Carbon
AISI 1045+ZINC PL
Tee Handle
3
Part
Material Carbon
410SS
Handle Nut
4
Part
Material Carbon
AISI 1045+ZINC PL
Bonnet
5
Part
Material Carbon
VITON
O'ring
6
Part
Material Carbon
NBR
Seat
7
Part
Carbon or Stainless Body
6000 PSI CWP
Square Stem
Gate Style
MNPT X FNPT, FNPT X FNPT
Delrin or Peek Seats
Nace MR-0157 Compliant

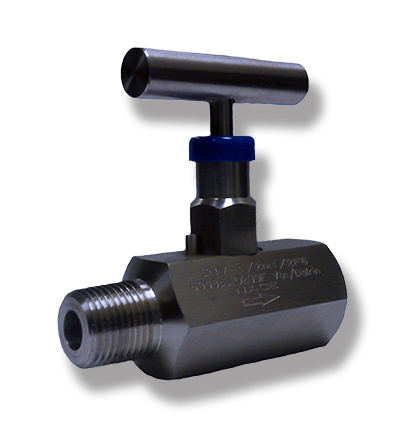

6000 PSI NEEDLE VALVE
Material Carbon
Delrin / Peek
O'ring
8
Part
Material Carbon
AISI 1045+ZINC PL
Body
9
Part
Material Carbon
NBR (RED)
Nut
10
Part
Material Stainless
304SS
Material Stainless
316SS
Material Stainless
A182 F6a
Material Stainless
410SS
Material Stainless
316SS
Material Stainless
VITON
Material Stainless
NBR
Material Stainless
Delrin / Peek
Material Stainless
316SS
Material Stainless
NBR (RED)
PRESSURE TEMPERATURE RATING
6000
4800
3600
2400
1200
0
100
200
300
400
500
Temperature °F
Pressure, PSI
Peek
Delrin
Part#
Material
NPT
NPT
L
D
H
CNV025M025F06
Carbon Steel
1/4" MNPT
1/4" FNPT
3.27
2.37
2.65
Part#
Material
NPT
NPT
L
D
H
CNV025F025F06
Carbon Steel
1/4" FNPT
1/4" FNPT
2.96
2.37
2.65
Part#
Material
NPT
NPT
L
D
H
CNV050M050F06
Carbon Steel
1/2" MNPT
1/2" FNPT
3.27
2.37
2.65
Part#
Material
NPT
NPT
L
D
H
CNV050F050F06
Carbon Steel
1/2" FNPT
1/2" FNPT
2.96
2.37
2.65
Part#
Material
NPT
NPT
L
D
H
CNV075M075F06
Carbon Steel
3/4" MNPT
3/4" FNPT
3.27
2.37
2.65
Part#
Material
NPT
NPT
L
D
H
CNV075F075F06
Carbon Steel
3/4" FNPT
3/4" FNPT
2.96
2.37
2.65
Part#
Material
NPT
NPT
L
D
H
CNV100M100F06
Carbon Steel
1" MNPT
1" FNPT
3.73
2.37
Material
NPT
NPT
L
D
H
CNV100F100F06
Carbon Steel
1" FNPT
1" FNPT
3.42
2.37
2.65
2.65
Part#
Part#
Material
NPT
NPT
L
D
H
SNV025M025F06
Stainless
1/4" MNPT
1/4" FNPT
3.27
2.37
2.65
Part#
Material
NPT
NPT
L
D
H
SNV025F025F06
Stainless
1/4" FNPT
1/4" FNPT
2.96
2.37
2.65
Part#
Material
NPT
NPT
L
D
H
SNV050M050F06
Stainless
1/2" MNPT
1/2" FNPT
3.27
2.37
2.65
Part#
Material
NPT
NPT
L
D
H
SNV050F050F06
Stainless
1/2" FNPT
1/2" FNPT
2.96
2.37
2.65
Part#
Material
NPT
NPT
L
D
H
SNV075M075F06
Stainless
3/4" MNPT
3/4" FNPT
3.27
2.37
2.65
Part#
Material
NPT
NPT
L
D
H
SNV075F075F06
Stainless
3/4" FNPT
3/4" FNPT
2.96
2.37
2.65
Part#
Material
NPT
NPT
L
D
H
SNV100M100F06
Stainless
1" MNPT
1" FNPT
3.73
2.37
Material
NPT
NPT
L
D
H
SNV100F100F06
Stainless
1" FNPT
1" FNPT
3.42
2.37
2.65
2.65
Part#
