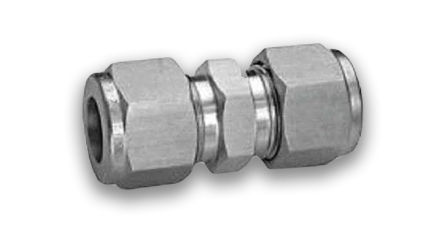

TUBE UNION

Fitting
Part #
T(OD)
L
H
G1
F
SFU-4
1/4"T (6.35)
41
26
14
14
Part #
T(OD)
L
H
G1
F
SFU-6
3/8" T(9.52)
46.5
31
17
17
Part #
T(OD)
L
H
G1
F
SFU-8
1/2"T (12.7)
50
31
22
22
Part #
T1(OD)
L
H
G1
F
DFU-4
1/4"T (6.35)
41
26
14
14
Part #
T1(OD)
L
H
G1
F
DFU-6
3/8" T(9.52)
46.5
31
17
17
Part #
T1(OD)
L
H
G1
F
DFU-8
1/2"T (12.7)
50
31
22
22
ALL DIMENSIONS ARE IN MILLIMETERS UNLESS OTHERWISE SPECIFIED. DIMENSIONS ARE FOR REFERENCE ONLY, SUBJECT TO CHANGE.
