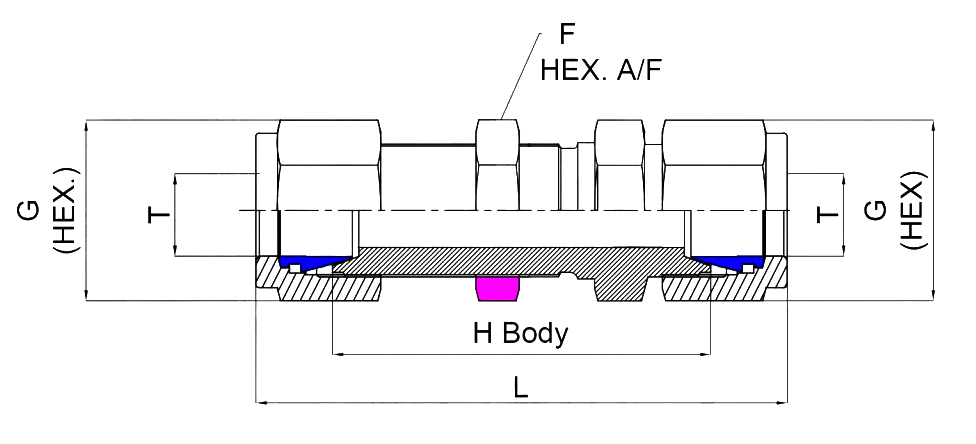

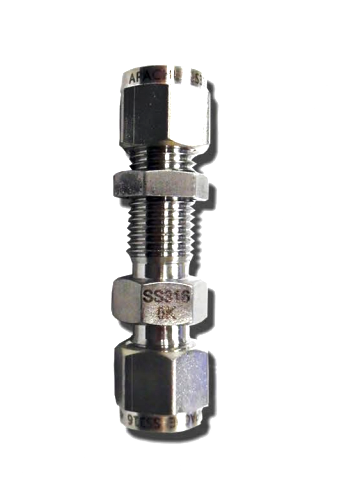

BULKHEAD UNION

Fitting
Part #
T(OD)
L
H
G
F
SFBU-4-4
1/4" T (6.35)
57.5
43
14
14
Part #
T(OD)
L
H
G
F
SFBU-6-6
3/8" T(9.52)
60.5
46
17
19
Part #
T(OD)
L
H
G
F
SFBU-8-8
1/2"T (12.7)
72
51
22
22
Part #
T1(OD)
L
H
G1
F
DFBU-4-4
1/4"T (6.35)
57.5
43
14
14
Part #
T1(OD)
L
H
G1
F
DFBU-6-6
3/8" T(9.52)
60.5
46
17
19
Part #
T1(OD)
L
H
G1
F
SFBU-8-8
1/2"T (12.7)
72
51
22
22
ALL DIMENSIONS ARE IN MILLIMETERS UNLESS OTHERWISE SPECIFIED. DIMENSIONS ARE FOR REFERENCE ONLY, SUBJECT TO CHANGE.
