CSBV SERIES

Material
A216 WCB
Body
1
Part
Material
A216 WCB
Bonnet
2
Part
Material
3045S
Ball
3
Part
Material
Delrin
Seat
4
Part
Material
3045S
Stem
5
Part
Material
Teflon
Stem Washer
6
Part
Carbon Steel Body
Floating Ball
Color Coded, Up to 5000 WOG
Blow-Out Proof Stem
Locking Plate
Grease Fitting
Nace MR-0175 Compliant
Threads Conforms to ANSI B1.20.1 BS21, DN 259/2999

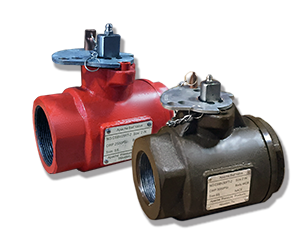

TWO-PIECE OILFIELD BALL VALVE
Material
Viton
Stem O'ring
7
Part
Material
Teflon
Thrust Bearing
8
Part
Material
A194 2H
Stop Collar
9
Part
Material
6150
Snap Ring
10
Part
Material
A395
Handle
11
Part
Material
Viton
Body Seal
12
Part
Material
A193 B7
Handle Bolt
13
Part
Material
A193 B7
Stop Screw
14
Part
Part#
NPT
Color
WP (PSI)
D
U
H
CSBV30FT-1
1" FP
Brown
3000
2.50
1.72
3.06
Part#
NPT
Color
WP (PSI)
D
U
H
CSBV25RT-2
2" RP
Orange
2500
3.50
2.63
5.63
B (INCH)
4.00
B (INCH)
5.50
Part#
NPT
Color
WP (PSI)
D
U
H
CSBV30RT-2
2" RP
Brown
3000
3.50
2.63
5.63
B (INCH)
5.50
G
6.25
G
8.50
G
8.50
Part#
NPT
Color
WP (PSI)
D
U
H
CSBV30FT-2
2" RP
Brown
3000
4.38
3.06
6.00
B (INCH)
6.00
Part#
NPT
Color
WP (PSI)
D
U
H
CSBV30FT-3
2" FP
Brown
3000
5.63
4.00
6.78
B (INCH)
8.75
G
8.50
G
15.00
Part#
NPT
Color
WP (PSI)
D
U
H
CSBV50RT-3
2" RP
Red
5000
3.50
2.63
5.63
B (INCH)
5.50
G
8.50
