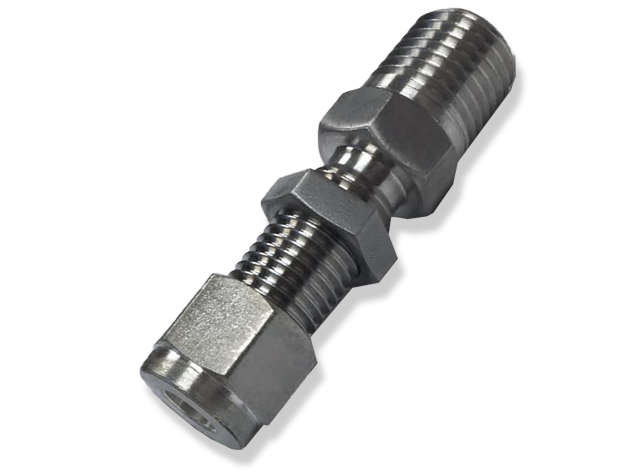

BULKHEAD MALE CONNECTOR

Fitting

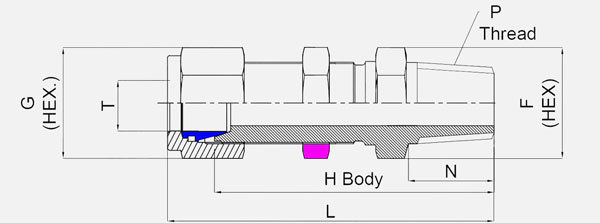

Part #
T(OD)
P(Thread)
N
L
H
G
F
SFBMC-4-4
1/4" T(6.37)
1/4"M NPT
14
53.5
46
14
14
Part #
T(OD)
P(Thread)
N
L
H
G
F
SFBMC-6-4
3/8" T(9.52)
1/4"M NPT
17
55.5
48
17
17
Part #
T(OD)
P(Thread)
N
L
H
G
F
SFBMC-6-6
3/8" T(9.52)
3/8"M NPT
17
55.5
48
17
19
Part #
T(OD)
P(Thread)
N
L
H
G
F
SFBMC-6-8
3/8" T(9.52)
1/2"M NPT
19
63.5
54
17
22
Part #
T(OD)
P(Thread)
N
L
H
G
F
SFBMC-8-6
1/2" T(12.7)
3/8"M NPT
14
62
53.5
22
22
Part #
T(OD)
P(Thread)
N
L
H
G
F
SFBMC-8-8
1/2" T(12.7)
1/2"M NPT
19
69
58
22
22
