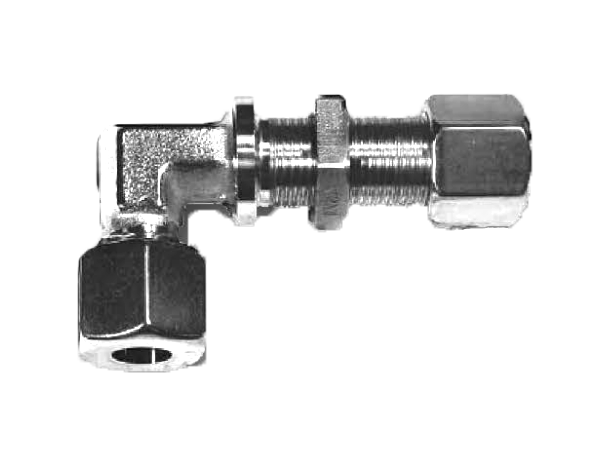

90 DEGREE BULKHEAD ELBOW

Fitting

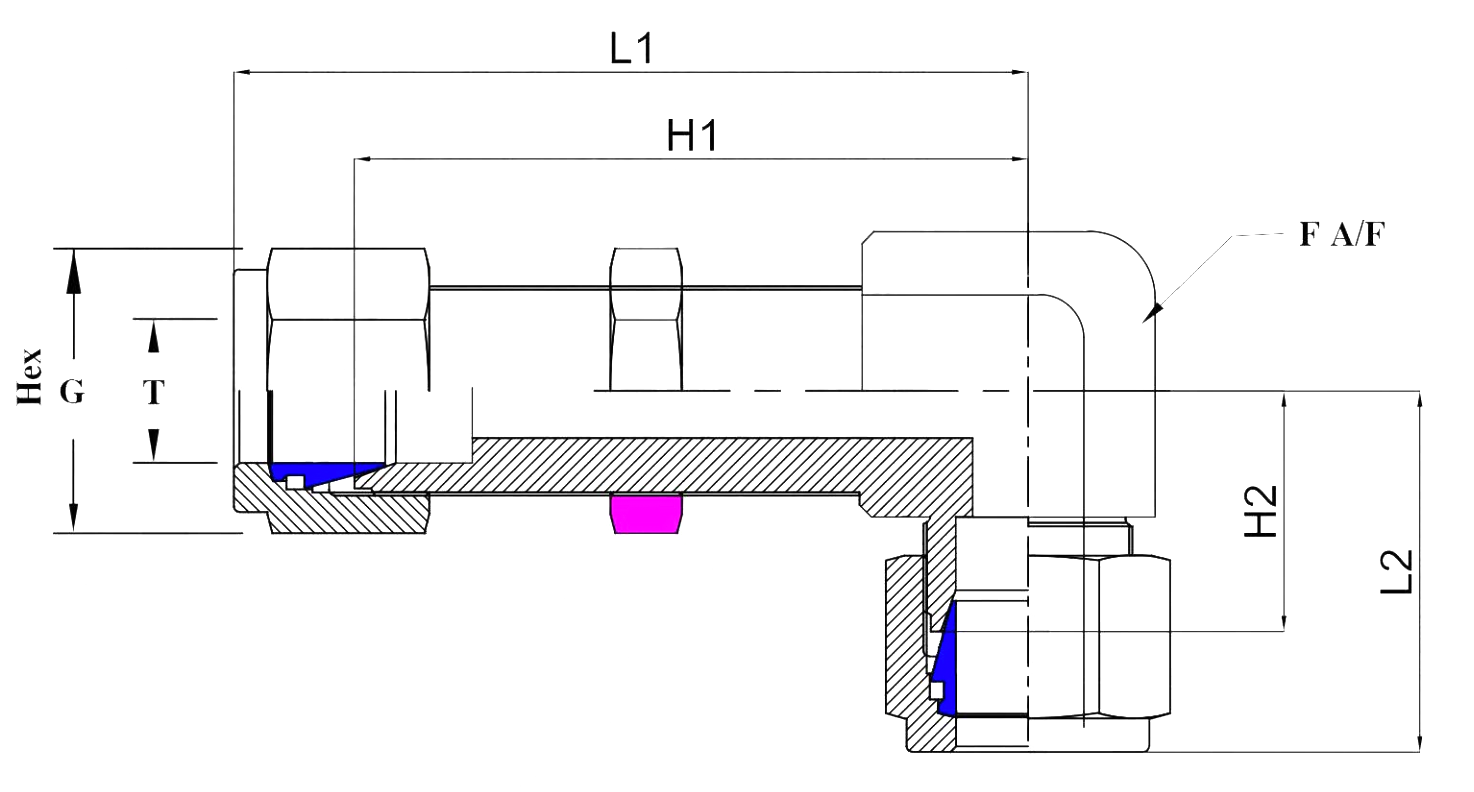

Part No
T(OD)
L2
H1
H2
G
F
SF9OBUE-4-4
1/4" T (6.35)
28.5
37
22.5
14
15.5
L1
44
Part No
T(OD)
L2
H1
H2
G
F
SF9OBUE-6-6
3/8" T (9.52)
30
38
24.5
17
-
L1
45
Part No
T(OD)
L2
H1
H2
G
F
SF9OBUE-8-8
1/2"T (12.7)
41
38
27
22
20.5
L1
51
Part No
T(OD)
L2
H1
H2
G
F
DF9OBUE-4-4
1/4" T (6.35)
28.5
37
22.5
14
15.5
L1
44
Part No
T(OD)
L2
H1
H2
G
F
DF9OBUE-6-6
3/8" T (9.52)
30
38
24.5
17
-
L1
45
Part No
T(OD)
L2
H1
H2
G
F
DF9OBUE-8-8
1/2"T (12.7)
41
38
27
22
20.5
L1
51
ALL DIMENSIONS ARE IN MILLIMETERS UNLESS OTHERWISE SPECIFIED. DIMENSIONS ARE FOR REFERENCE ONLY, SUBJECT TO CHANGE.
