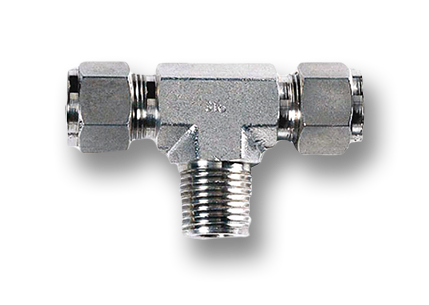

MALE BRANCH TEE

Fitting
Part #
T1(OD)
P(Thread)
L
H
G1
G2
N
DFMBT-4-4-4
1/4" T(6.35)
1/4" M NPT
59
45
14
14
14
F
15.5
T2(OD)
1/4" T (6.35)
Part #
T1(OD)
P(Thread)
L
H
G1
G2
N
DFMBT-4-4-6
1/4" T (6.35)
3/8" M NPT
67
52
14
14
14
F
20.5
T2(OD)
1/4" T (6.35)
Part #
T1(OD)
P(Thread)
L
H
G1
G2
N
DFMBT-6-6-4
3/8" T (9.52)
1/4" M NPT
67
48
17
17
14
F
17.5
T2(OD)
3/8" T (9.52)
Part #
T1(OD)
P(Thread)
L
H
G1
G2
N
DFMBT-6-6-6
3/8" T (9.52)
3/8" M NPT
62
52
17
17
14
F
20.5
T2(OD)
3/8" T (9.52)
Part #
T1(OD)
P(Thread)
L
H
G1
G2
N
SFMBT-4-4-4
1/4" T(6.35)
1/4" M NPT
59
45
14
14
14
F
15.5
T2(OD)
1/4" T(6.35)
Part #
T1(OD)
P(Thread)
L
H
G1
G2
N
SFMBT-4-4-6
1/4" T(6.35)
3/8" M NPT
67
52
14
14
14
F
20.5
T2(OD)
1/4" T(6.35)
Part #
T1(OD)
P(Thread)
L
H
G1
G2
N
SFMBT-4-4-8
1/4" T(6.35)
1/2" M NPT
78
64
14
14
19
F
22
T2(OD)
1/4" T(6.35)
Part #
T1(OD)
P(Thread)
L
H
G1
G2
N
SFMBT-6-6-4
3/8" T (9.52)
1/4" M NPT
67
48
17
17
14
F
17.5
T2(OD)
3/8" T (9.52)
Part #
T1(OD)
P(Thread)
L
H
G1
G2
N
SFMBT-6-6-6
3/8" T (9.52)
3/8" M NPT
62
52
17
17
14
F
20.5
T2(OD)
3/8" T (9.52)
Part #
T1(OD)
P(Thread)
L
H
G1
G2
N
SFMBT-6-6-8
3/8" T(9.52)
1/2" M NPT
78
64
17
17
19
F
22
T2(OD)
3/8" T(9.52)
Part #
T1(OD)
P(Thread)
L
H
G1
G2
N
SFMBT-8-8-4
1/2" T(12.7)
1/4" M NPT
72
52
22
22
14
F
20.5
T2(OD)
1/2" T(12.7)
Part #
T1(OD)
P(Thread)
L
H
G1
G2
N
SFMBT-8-8-6
1/2" T(12.7)
3/8" M NPT
72
52
22
22
14
F
20.5
T2(OD)
1/2" T(12.7)
Part #
T1(OD)
P(Thread)
L
H
G1
G2
N
SFMBT-8-8-8
1/2" T(12.7)
1/2" M NPT
84
64
22
22
19
F
22
T2(OD)
1/2" T(12.7)
ALL DIMENSIONS ARE IN MILLIMETERS UNLESS OTRERWISE SPECIFIED. DIMENSIONS ARE FOR REFERENCE ONLY, SUBJECT TO CHANGE.
