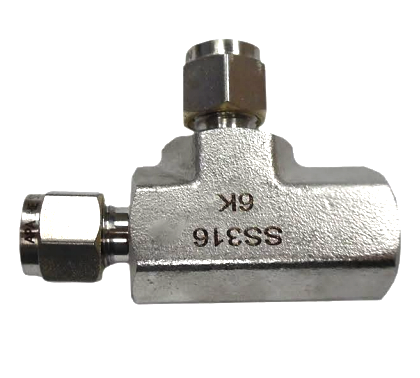

FEMALE RUN TEE

Fitting

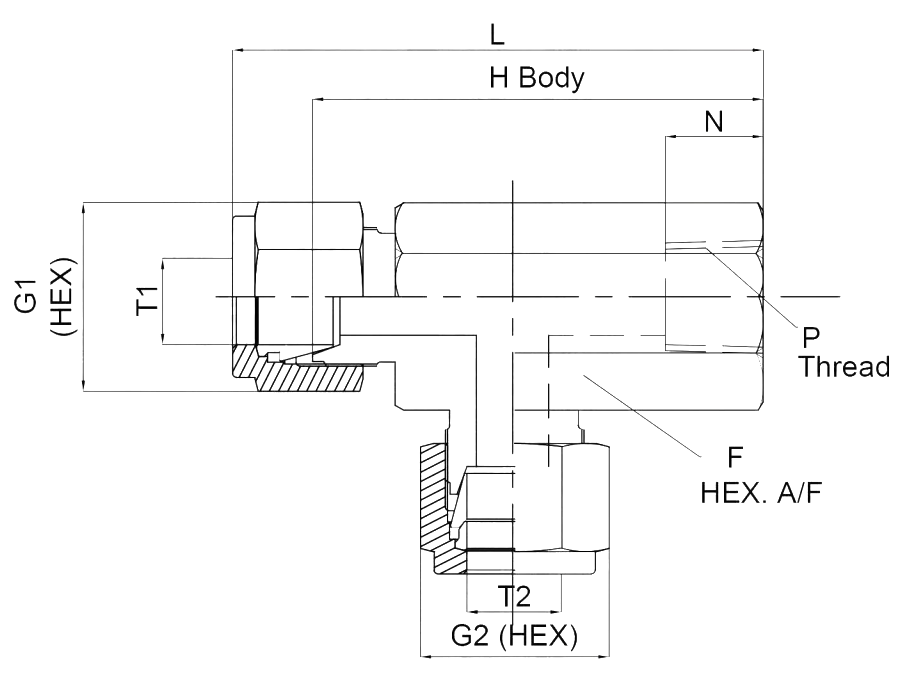

Part #
T1(OD)
T2(OD)
L
H
G1
G2
N
SFFRT-4-4-4
1/4" T (6.35)
1/4" T (6.35)
56.5
50
14
14
14
F
20.5
P(Thread)
1/4" F NPT
Part #
T1(OD)
T2(OD)
L
H
G1
G2
N
SFFRT-6-4-6
3/8" T (9.52)
3/8" T (9.52)
58
50
17
17
14
F
20.5
P(Thread)
1/4" F NPT
Part #
T1(OD)
T2(OD)
L
H
G1
G2
N
SFFRT-6-6-6
3/8" T (9.52)
3/8" T (9.52)
58
50
17
17
14
F
22.5
P(Thread)
3/8" F NPT
Part #
T1(OD)
T2(OD)
L
H
G1
G2
N
SFFRT-8-6-8
1/2" T (12.7)
1/2" T (12.7)
64
54
22
22
14
F
22
P(Thread)
3/8" F NPT
Part #
T1(OD)
T2(OD)
L
H
G1
G2
N
SFFRT-8-8-8
1/2" T (12.7)
1/2" T (12.7)
71
61
22
22
19
F
27.5
P(Thread)
1/2" F NPT
Part #
T1(OD)
T2(OD)
L
H
G1
G2
N
DFFRT-4-4-4
1/4" T (6.35)
1/4" T (6.35)
56.5
50
14
14
14
F
20.5
P(Thread)
1/4" F NPT
Part #
T1(OD)
T2(OD)
L
H
G1
G2
N
DFFRT-6-4-6
3/8" T (9.52)
3/8" T (9.52)
58
50
17
17
14
F
20.5
P(Thread)
1/4" F NPT
Part #
T1(OD)
T2(OD)
L
H
G1
G2
N
DFFRT-6-6-6
3/8" T (9.52)
3/8" T (9.52)
58
50
17
17
14
F
22.5
P(Thread)
3/8" F NPT
Part #
T1(OD)
T2(OD)
L
H
G1
G2
N
DFFRT-8-6-8
1/2" T (12.7)
1/2" T (12.7)
64
54
22
22
14
F
22
P(Thread)
3/8" F NPT
Part #
T1(OD)
T2(OD)
L
H
G1
G2
N
DFFRT-8-8-8
1/2" T (12.7)
1/2" T (12.7)
71
61
22
22
19
F
27.5
P(Thread)
1/2" F NPT
ALL DIMENSIONS ARE IN MILLIMETERS UNLESS OTHERWISE SPECIFIED. DIMENSIONS ARE FOR REFERENCE ONLY, SUBJECT TO CHANGE.
